Armored drop cable-GJXFKH/GJYXCKH-1KM
-
Fiber Core：
- G657A1
- G657A2
-
outer sheath：
- LSZH
-
Optical cable model
- GJXFKH-1B6
- GJXFKH-2B6
- GJYXCKH-1B6
- GJYXCKH-2B6
inventory
8000000
隐藏域元素占位
- Product Description
-

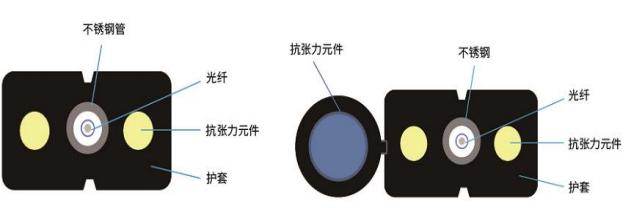

1 、Product structure diagram
2 、Product application
3 、Product Features
。Has superior mechanical and environmental performance
。Soft, flexible, strong, and easy to connect, especially suitable for optical connections such as long-distance, field, building wiring, trunking, and photoelectric mixing
。The flame retardancy of the product and the mechanical and physical properties of the sheath meet the existing conventional indoor optical cable industry standards
。The existing performance of the product can be changed according to customer requirements
4、Optical cable parameters
Structural dimensions corresponding to various specifications of optical cables (Table 1)
Fiber optic cable model
Outer diameter of optical cable mm
Outer diameter of steel armor mm
Bare fiber mm
GJXFKH
Φ3.2*2.1±0.2
Φ0.9±0.05
Φ0.25
GJYXCKH
Φ(5.2±0.2)*(2.1±0.1)
Φ0.9±0.05
Φ0.25
Mechanical properties corresponding to various specifications of optical cables (Table 2)
Fiber optic cable model
Cable diameter Mm
Maximum tensile strength N
Side pressure N/100mm
Short term
Long term
GJXFKH
Φ3.2*2.1±0.2
300
200
3000
GJYXCKH
Φ(5.2±0.2)*(2.1±0.1)
600
300
3000
。All values in Table 2 are for reference
5、Material selection。Fiber types: single-mode G657, G657A2, G657B2, G657B3, multi-mode 50/125, 62.5/125, OM3, various energy fibers, image bundles and other special products
。Sheath material: LSZH
。Sheath Color: Black
。Stainless steel armor: SUS304, SUS204, or other agreed materials
。Other requirements: According to other special requirements agreed by the user
Key words:- GJXFKH
- GJYXCKH
- fiber drop cable
- outdoor fiber drop cable
