FTTH Outdoor Waterproof Wall Mountable plastic 16 ports 16core 32core Optical Fiber Splitter Distribution Box

Features 1.Unload or Preloaded with 1:16 PLC fiber splitter with SC/UPC, SC/APC fiber adapters 2.Free Waterproof type Fiber Distribution Box Sample 3.Made of Premium Grade Flame Resistant Material 4.Suitable to SC/UPC or SC/APC Fiber Adapters & Pigtails 5.Reasonable Bending Radius for Fiber Protection 6.Can be used with Waterproof Adapter for Fast Connection 7.Allow outdoor cable splitting fusion

Send Inquiry Now

details

Description：

This 16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Optical Splitter Distribution Box is designed with a hinge to connect base and cover.The inside can be installed with 1:16 PLC fiber optic splitters or manage 16 pcs fiber optic pigtails.

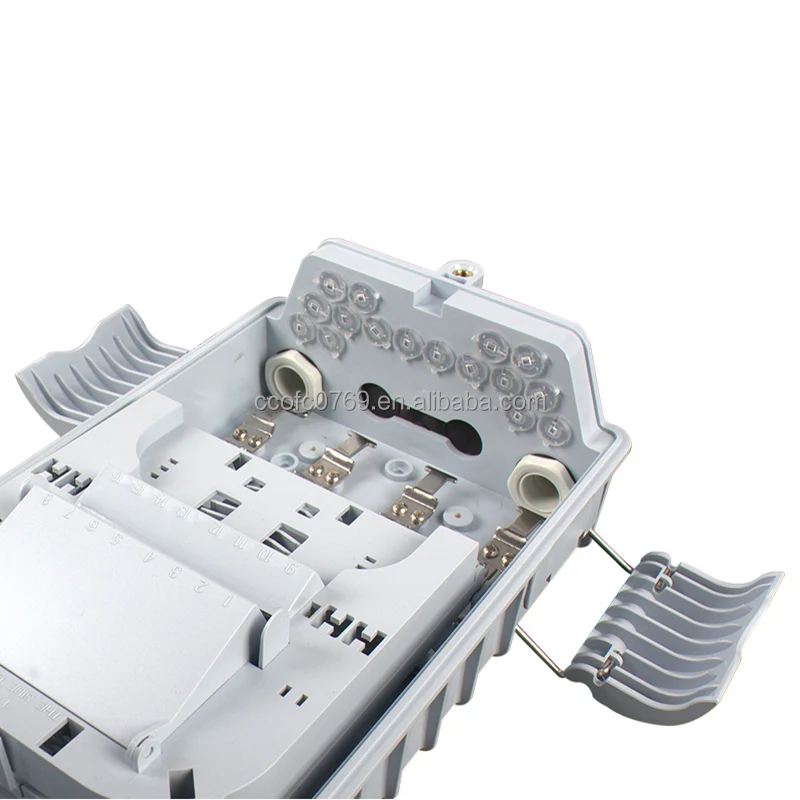

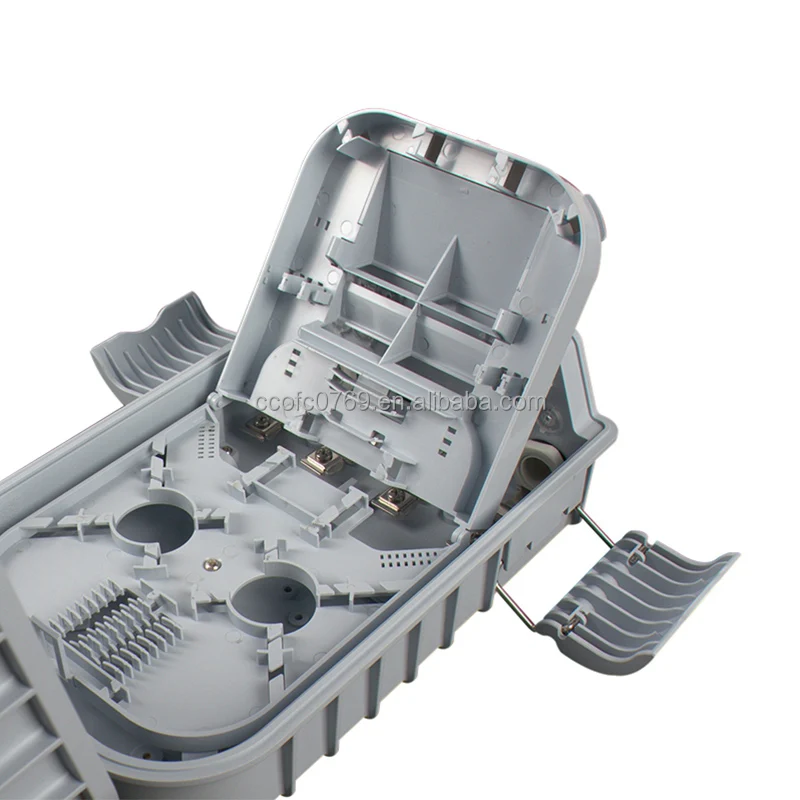

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter Distribution Box inside view

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter Distribution Box splice tray

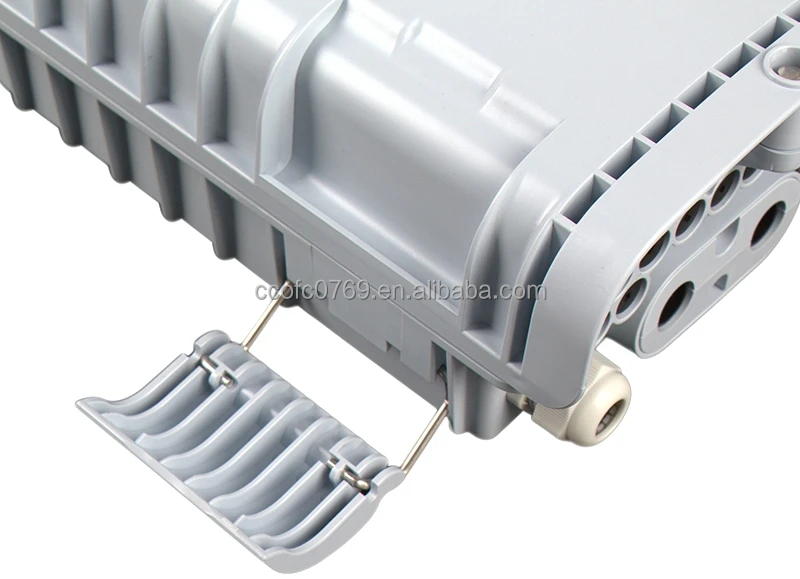

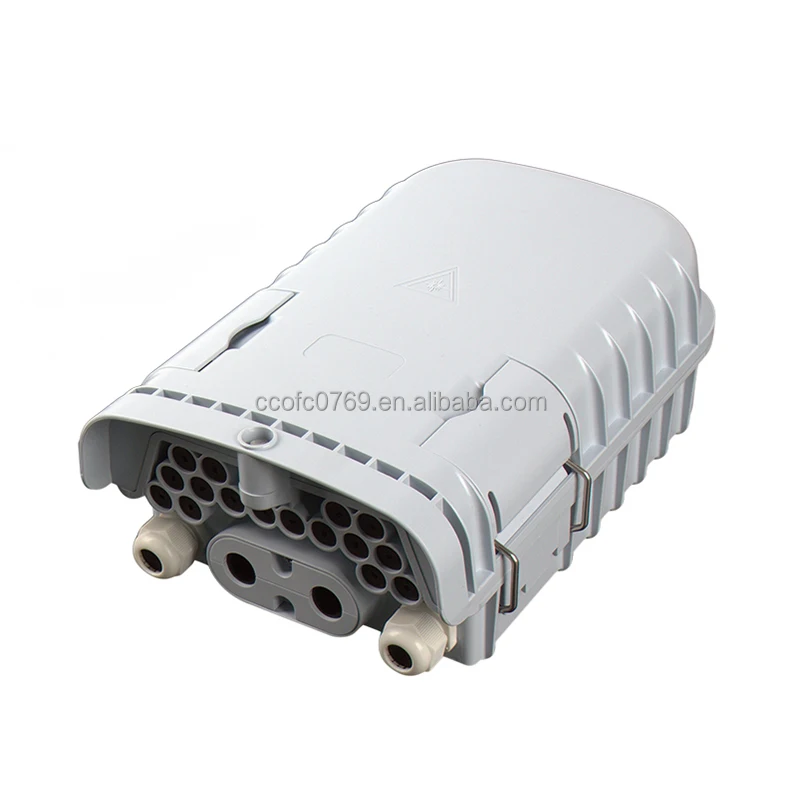

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter Distribution Box Cable Ports

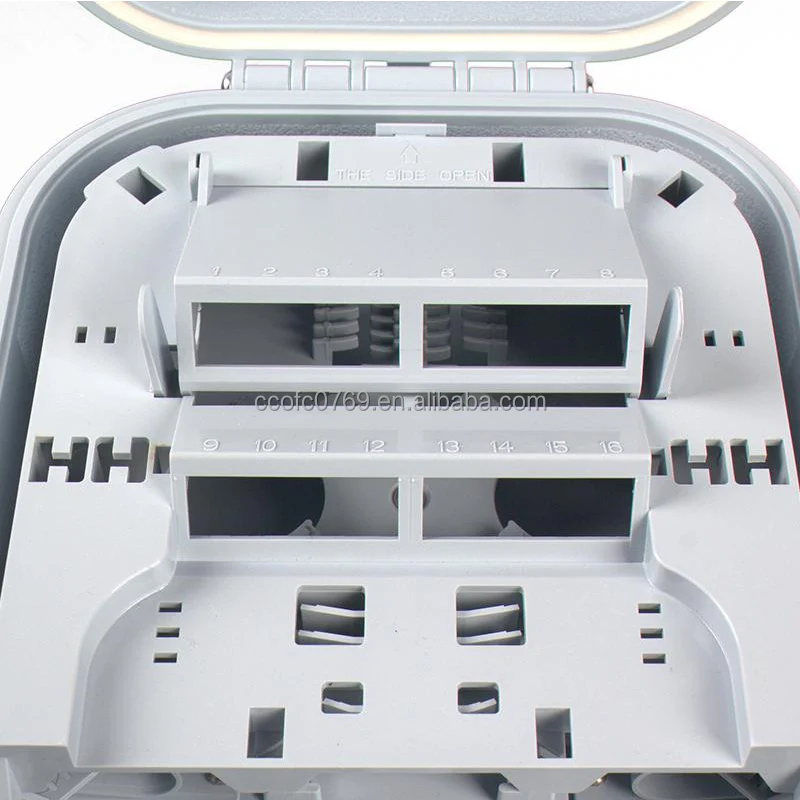

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter Distribution Box Adapter Panel

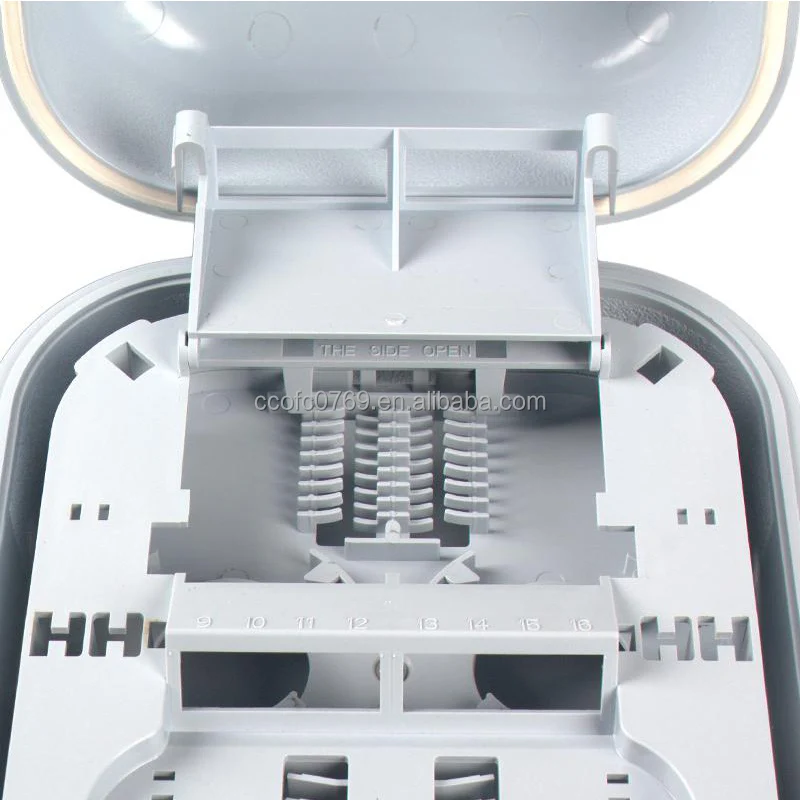

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter Distribution Box fiber adapter panel & splice tray

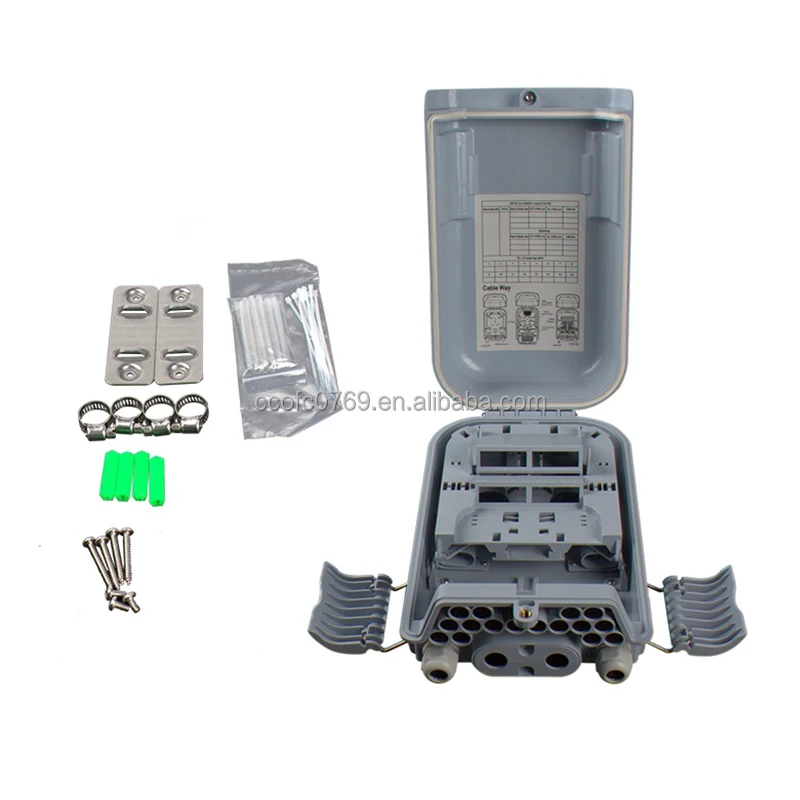

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter Distribution Box Accessories

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter Distribution Box Closing parts

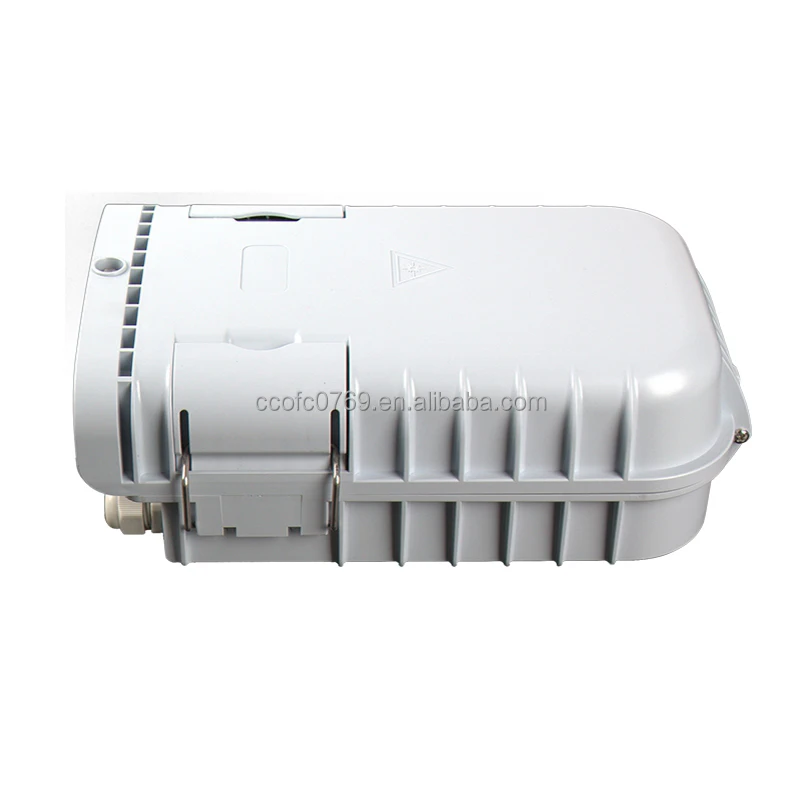

16 ports Outdoor Waterproof Wall Mountable FTTH Fiber Splitter Distribution Box side view

Features

Unload or Preloaded with 1:16 PLC fiber splitter with SC/UPC, SC/APC fiber adapters
Free Waterproof type Fiber Distribution Box Sample
Made of Premium Grade Flame Resistant Material
Suitable to SC/UPC or SC/APC Fiber Adapters & Pigtails
Reasonable Bending Radius for Fiber Protection
Can be used with Waterproof Adapter for Fast Connection
Allow outdoor cable splitting fusion

Suitable Adapters	SC LC Fiber Adapter
Material	Premium PC/ABS material
Weight	1420g
Available Cable	Outdoor or Indoor Cable
Outlet	16 Port
Installation way	Wall Mount
Dimensions	287mm x 172mm x 102mm
Applications	Wall Mountable
Compatible Riser Cable Types	Yes
Connector Capacity	16pcs SC or 32pcs LC connectors
Connector Type	SC LC
Drop Cable Connection	Yes
Includes Splitters	No
Indoor Outdoor	Both Indoor / Outdoor Cable
Location	Wall or Pole Usually
Location of Use	Fiber to the building or FTTH
Lock Compatible	Screws
Number of Terminal Drops	2 Cables
Number of Trays	1 Splice Tray
Product Type	Wall fiber distribution
Solution for	Wall Mount Cabling
Splice Capacity	16 fibers
Splitter Capability	Yes
Trademark	Teleweaver or Customized
Lead Time	5 days for 100pcs, 10 days for 800pcs
MOQ	20pcs

Installation：

1．Wall-mounted installation
Drill 4 holes over the wall based on the size in table 1，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten。(Pic 4)

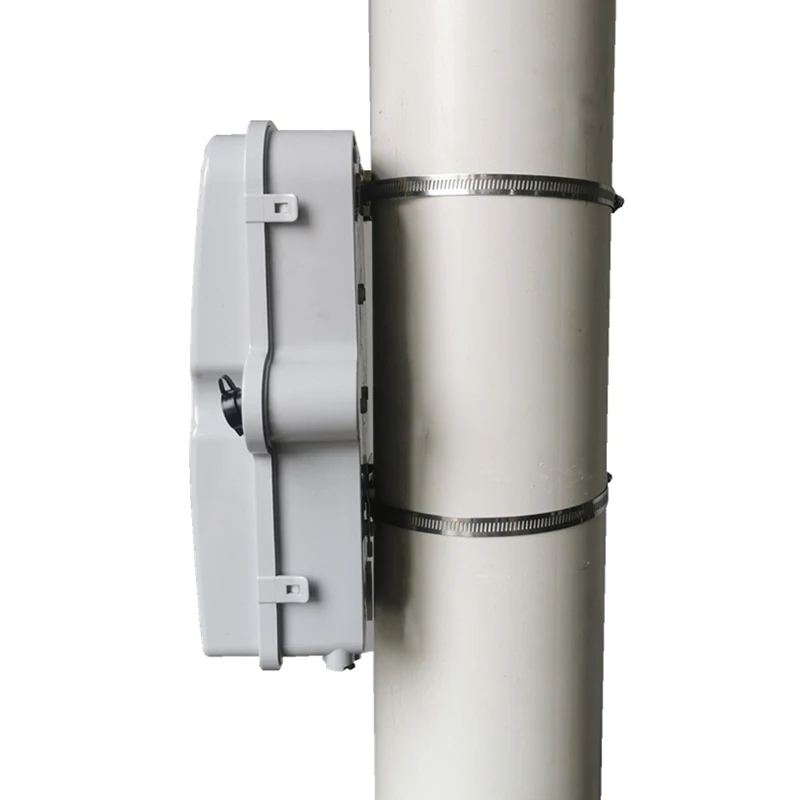

2．Pole-mounted installation
     Fix 1 set of the easy pole ring to the telecom pole .（Pic 5）
