CCOFC GYFC8Y Optical Cable Specification

1. Product Overview

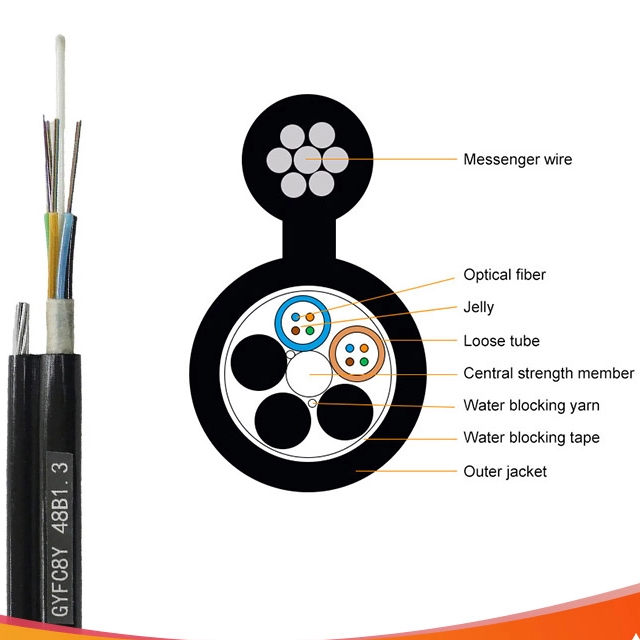

CCOFC GYFC8Y is a figure-8 self-supporting aerial optical cable with loose tube stranded structure, non-metallic strength member, semi-dry water-blocking design and PE outer sheath. It integrates optical communication unit and galvanized steel messenger wire into one figure-8 shape, enabling direct aerial installation without extra supporting lines. It complies with YD/T 1155-2011 and IEC 60794-1-2, widely used for outdoor access network, rural communication, community and overhead line deployment. Fiber count ranges from 2 to 144 cores.

2. Key Features

· Integrated Figure-8 Self-Supporting: No additional messenger wire; simple aerial installation, saves construction cost.

· Non-metallic Cable Core: Insulating and anti-electromagnetic interference, suitable for overhead near power lines.

· Semi-dry Design: Easy stripping, splicing and maintenance with stable water-blocking performance.

· Lightweight & Compact: Small outer dimension, low load on poles; overall dimension approx 9.3×16.0 mm, weight 126 kg/km.

· Excellent Mechanical Performance: Long-term tension 1500N; short-term tension 4500N; long-term crush 300N, short-term crush 1000N.

· Durable Weather Resistance: Anti-UV, salt spray and aging; service life over 30 years.

3. Technical Parameters

· Fiber Count: 2–144 cores

· Cable Dimension: 9.3×16.0 mm

· Weight: 126 kg/km

· Tensile Strength: Long-term 1500N; Short-term 4500N

· Crush Resistance: Long-term 300N; Short-term 1000N

· Bending Radius: Static ≥10×D; Dynamic ≥20×D

· Operating Temperature: -40℃ ~ +80℃

· Sheath Material: HDPE (standard)

4. Application Scenarios

· Outdoor overhead communication for rural areas, towns and residential communities.

· Access network extension, 5G micro base station backhaul.

· Overhead lines in suburban, mountainous and scenic areas.

· Short-to-medium distance communication along low-voltage power corridors.

5. Installation & Maintenance

· Adopt aerial lashing or suspension installation; control laying tension within standard value.

· Follow minimum bending radius to avoid sharp folding.

· Avoid dragging on rough ground to prevent sheath scratch.

· Inspect every 6–12 months for sheath damage, aging and loose suspension.

· Keep away from strong chemical corrosion and high-temperature exposure.
