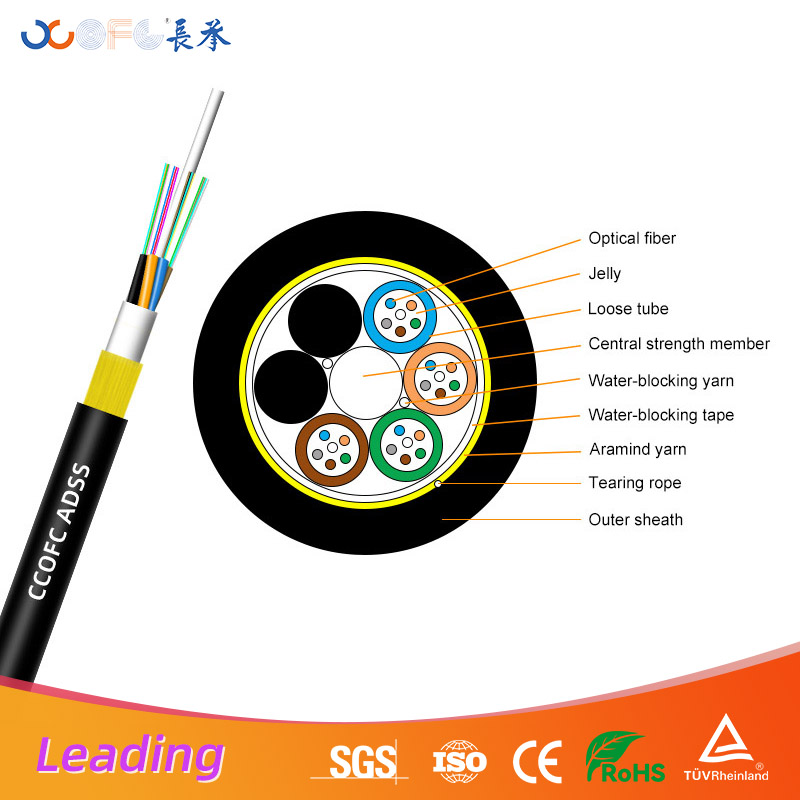

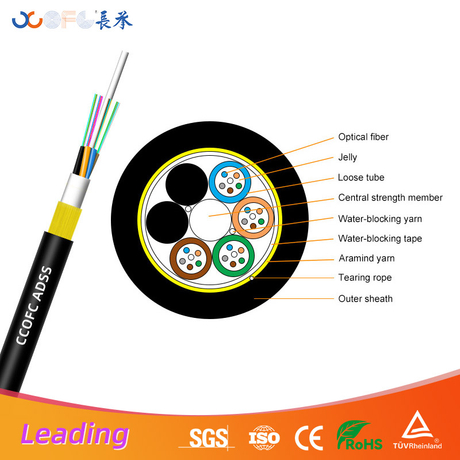

CCOFC ADSS Outdoor All-Dielectric Self-Supporting Optical Cable (Single Sheath)

Product Overview

CCOFC single-sheath ADSS is an all-dielectric, self-supporting outdoor optical cable. It features compact structure, light weight, reliable performance and high cost-performance, compliant with IEC 60794-1-2 and GB/T 7424.2. It is widely used in power communication, long-distance transmission and outdoor access networks.

Key Advantages

All-dielectric structure, free of metal, immune to EMI/RFI, safe for ≤110kV power corridors.

Self-supporting, no additional messenger wire; installation cost reduced by 15–20%.

Light weight and compact size, easy for transportation and installation.

UV, corrosion and aging resistant, service life over 30 years.

Low attenuation, supports high-speed transmission up to 100Gbps+.

Customizable in core count, span, sheath type and tensile strength.

Application Scenarios

Power communication: 110kV/220kV power lines, smart grid data transmission.

Long-distance outdoor transmission: rural, mountainous and remote areas.

Access network: 5G base station backhaul and outdoor wireless access.

Harsh environments: mines, chemical plants, coastal and cold regions.
