CCOFC-GYFTY Optical Cable

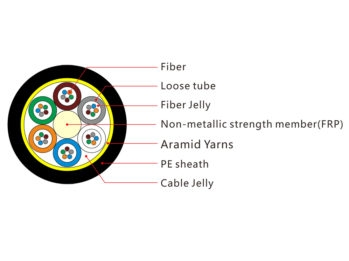

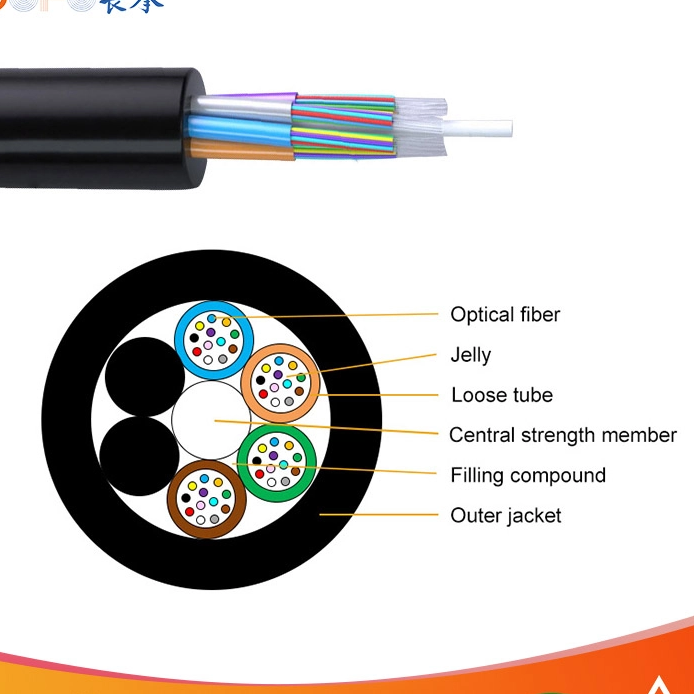

1. Construction

G.652D/G.657A2 fiber → jelly-filled PBT loose tube → FRP central strength → SZ stranded core → black UV HDPE sheath

2. Key Parameter

· Fiber count: 2~288 cores

· Tension: Long 600N / Short 1500N; Crush: 300N/100mm /1000N/100mm

· Bend: Static≥10×OD, Dynamic≥20×OD

· Temp: -40℃ ~ +70℃

· Loss(G.652D):1310nm≤0.36dB/km;1550nm≤0.22dB/km

3. Feature & Application

Non-metal, anti-lightning & anti-EMI; for aerial & duct laying. GYFTZY: LSZH flame retardant type
