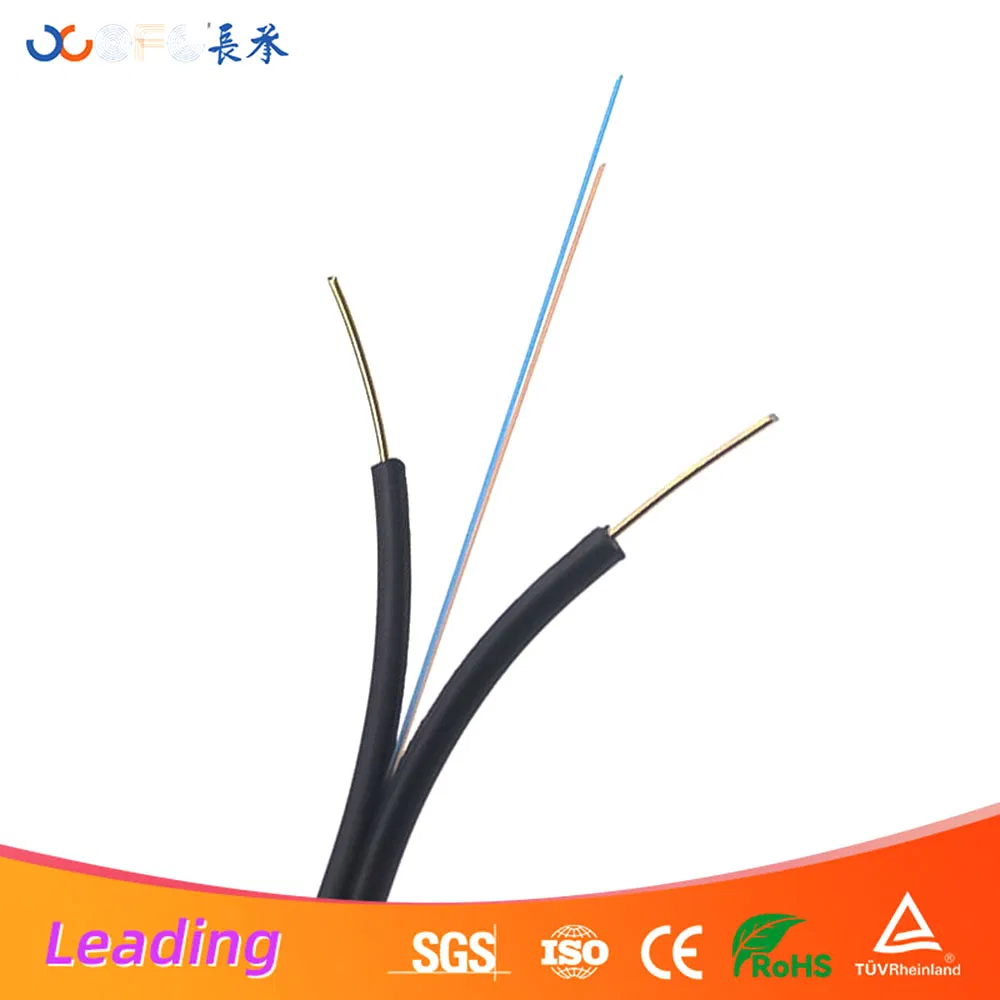

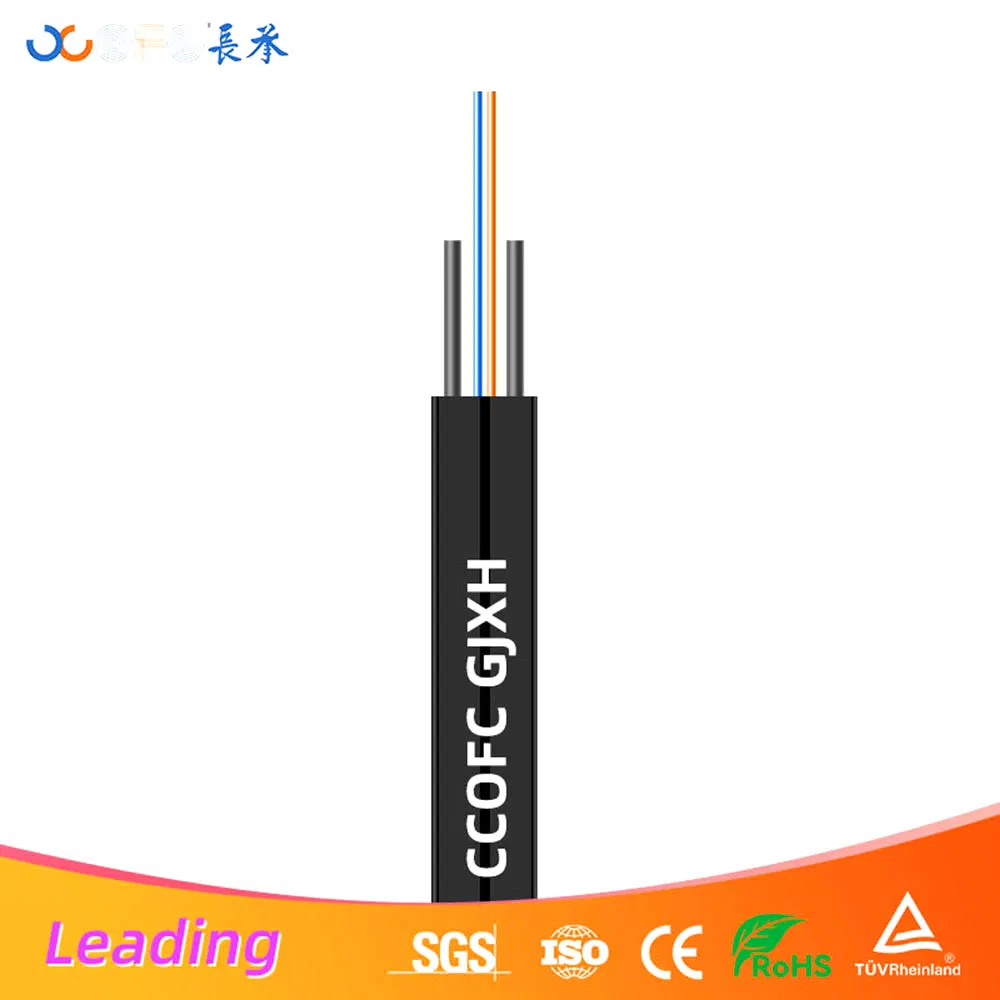

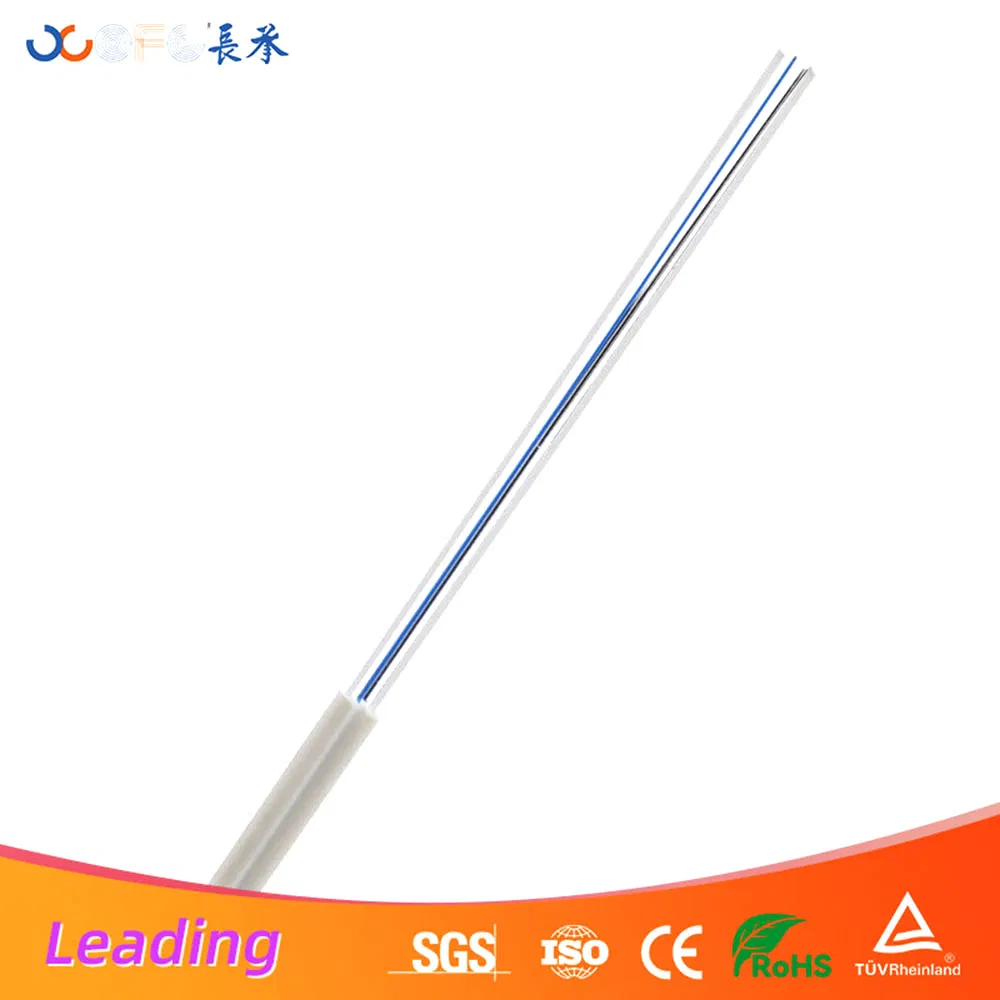

FTTH drop cable indoor GJXH fiber optic cable G657A


Availability:

Quantity:

Inquire Add to Basket

Model:
GJXH/GJXFH
Brand:
CCOFC
Code:
GJXH/GJXFH

The GJXH indoor bow-type drop cable is specifically designed for Fiber-to-the-Home (FTTH) deployments, delivering reliable "last-mile" connectivity in indoor environments.

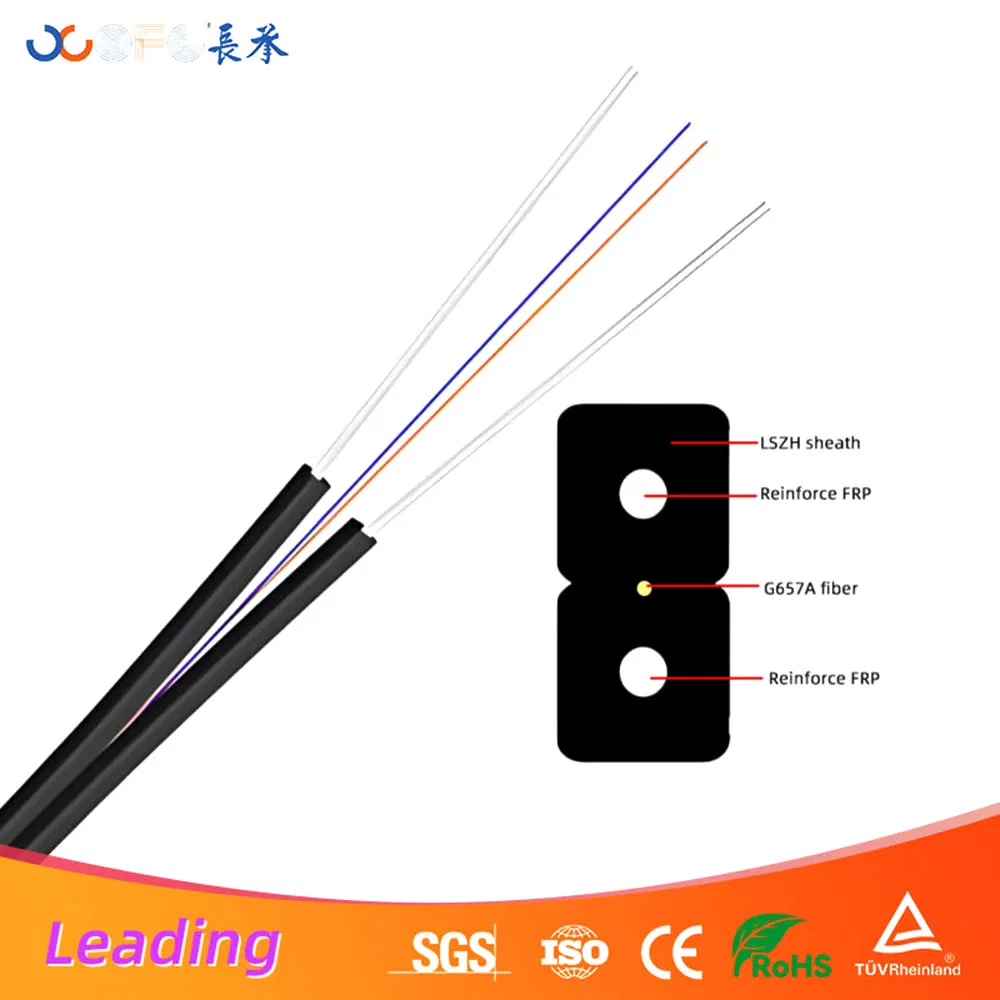

This cable features a compact bow-type design with a central optical fiber unit, two parallel metal strength members (steel wires/FRP), and a low-smoke zero-halogen (LSZH) outer sheath. The flat profile and "8"-shaped grooves facilitate easy stripping and splicing, simplifying on-site installation.

fiber cable FTTH Optical Fiber Drop Cable fiber optic cable GJXH/GJXFH Drop cable Indoor Drop Cable FTTH Optical FiberCable Optical Cable Indoor/Outdoor Optical Fiber Cable GJXH

Product Description

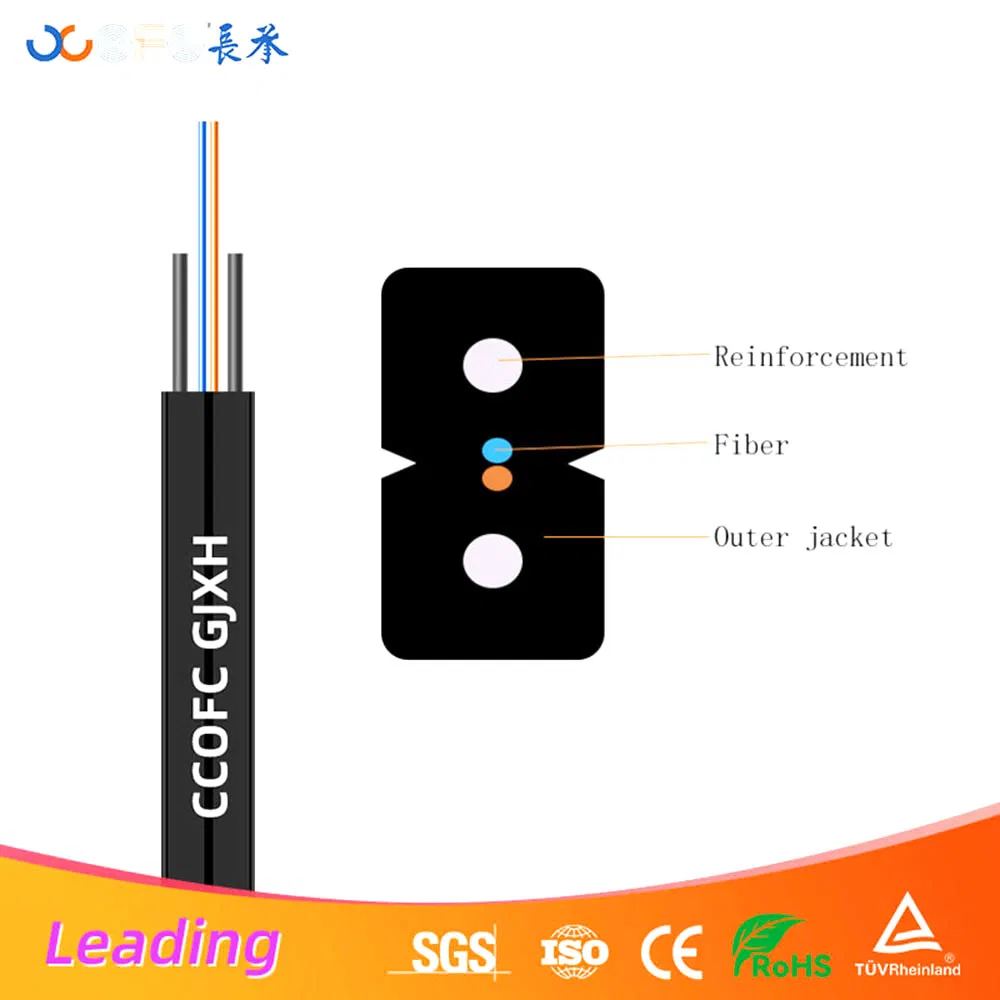

Indoor drop cable GJXH involves placing the fiber optic cable in the center, with two reinforcement elements on both sides, and extruding a low smoke halogen-free flame-retardant sheath to form the cable.

APPLICATION SCOPE

Indoor inter office overhead

FTTH fiber optic home entry, user terminal

Vertical shaft, building wiring

Product Parameters

TECHNICAL PARAMETERS
Product Name	Indoor Fiber Drop Cable.FTTH drop cable
Cable Type	GJXH/GJFXH
Core Structure	Central Optical Communication Unit
Reinforcement Type	Steel/FRP
Cable Shape	Butterfly Cross-Section For Easy Strength Member Separation
Cable Color	Black

Optical Cable Model	Number of fibers	Optical Cable Size (mm)	Cable weight Kg/km	Allow tensile force N		Allow Crush force N/100mm		Bend radius mm
Optical Cable Model	Number of fibers	Optical Cable Size (mm)	Cable weight Kg/km	Long-term	Short-term	Long-term	Short-term	Static	Dynamic
GJXH	1	3.0x2.0±0.1	11	100	200	1000	2000	20D	40D
GJXH	2	3.0x2.0±0.1	11	100	200	1000	2000	20D	40D
GJXH	4	3.0x2.0±0.1	11	100	200	1000	2000	20D	40D
GJXFH	1	3.0x2.0±0.1	9.5	100	200	1000	2000	20D	40D
GJXFH	2	3.0x2.0±0.1	9.5	100	200	1000	2000	20D	40D
GJXFH	4	3.0x2.0±0.1	9.5	100	200	1000	2000	20D	40D

Note: The above relevant descriptions and technical parameters are for reference only, and the product is subject to the physical object or purchase contract.
