Views: 0 Author: Site Editor Publish Time: 2026-06-05 Origin: Site

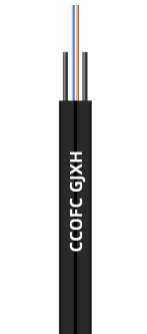

The GJXH Indoor Metal-Strengthened Drop Cable is a high-performance butterfly cable designed for FTTH/FTTX indoor applications. With a compact, flexible structure and LSZH jacket, it delivers stable, safe high-speed data transmission in residential, office, and smart building environments.

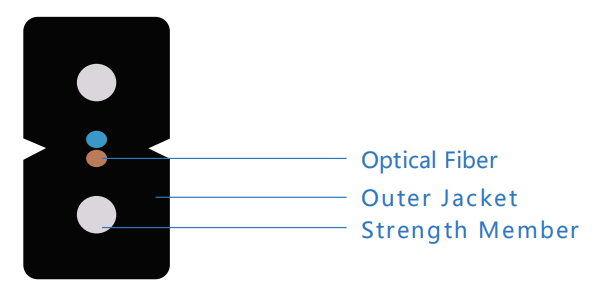

l Optical fiber:The core of the cable, transmitting high-speed data with low loss
l Outer Jacket: LSZH material, flame-retardant and safe for indoor use
l Strength member: Phosphated steel wire, providing tensile and crush resistance
l Superior Flexibility & Easy Installation
With a compact figure-8 cross-section and a small minimum bending radius, the GJXH cable is easy to route through tight spaces, making it perfect for wall-mounting, conduit installation, and overhead wiring in homes and offices.
l High Safety for Indoor Use
The LSZH jacket meets strict indoor fire safety standards, ensuring no toxic gas release in case of fire—critical for protecting occupants in enclosed spaces.
l Mechanical Reliability
Phosphated steel strength members provide excellent protection against tension and crushing, preventing fiber breakage during installation and daily use.
l Wide Compatibility
Compatible with standard fiber optic connectors and splicing equipment, this cable integrates seamlessly with existing FTTH networks.
Parameter | GJXH |
Core Count | 1 / 2 / 4 Cores |
Outer Diameter | Outer Size (W×T): 2.0×3.0±0.1 mm |
Min. Bending Radius | 15mm (static) / 30mm (dynamic) |
Short-Term Tensile Strength | 200 N |
Operating Temperature | -5 °C ~ +50 °C |
Packaging | 1km per wooden reel |
FTTH / FTTX indoor drop cable
Building internal communication wiring
Office network cabling
Smart home and smart building projects
Manufactured to strict industry standards, our GJXH Indoor Metal-Strengthened Drop Cable undergoes rigorous quality testing to ensure consistent performance and durability. We offer customizable core counts, packaging options, and fast delivery to meet your project needs. Contact us today to learn more about how our fiber optic solutions can support your next deployment!
