Views: 0 Author: Site Editor Publish Time: 2026-06-27 Origin: Site
With booming FTTH and indoor communication projects, our GJBFJVH indoor breakout optical cable adopts stranded loose tube & all-dielectric non-metal design. It integrates large fiber capacity, strong mechanical resistance and reliable environmental performance for all indoor wiring.

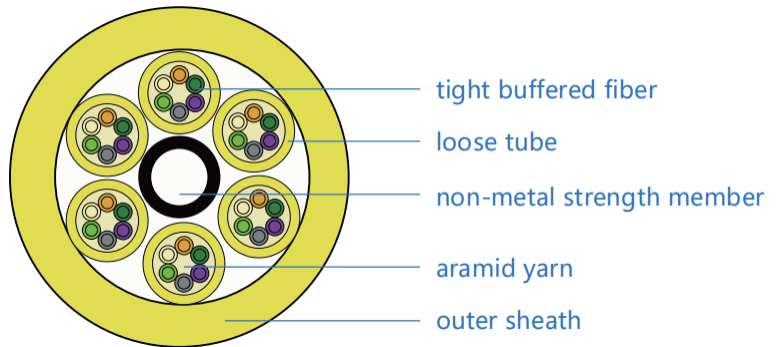

5-layer structure: tight buffered fiber, loose tube, non-metal strength member, aramid yarn, flame-retardant outer sheath. Aramid yarn and central reinforcement deliver excellent tensile property.
Available in 36/48/64/72/96 cores, unified mechanical indicators including tension, bending and crush resistance, operating temperature range: -20℃ ~ +60℃.
l High tensile strength
Easier pulling during vertical shaft & ceiling construction, less fiber breakage and construction waste.
l High fiber density
Small outer diameter holds more fibers, saves pipeline space and reserves room for later capacity expansion.
l All-dielectric design
Free of metal, anti-electromagnetic interference and lightning protection, stable signal in thunder-prone areas.
l Flame retardant, waterproof & anti-corrosion
Long service life, reduces later maintenance costs.
l Good bending performance
Fits narrow troughs & sharp corners, no extra signal loss after repeated bending.
l Wide temperature tolerance
Works stably in basements, offices and server rooms.
l FTTH vertical trunk lines for residential buildings & commercial complexes
l Data center internal cabinet interconnection wiring
l Office building weak current system backbone cable
l Indoor monitoring, campus network and intelligent building communication projects
l Indoor wiring projects in thunderstorm-prone regions
Professional fiber cable manufacturer with full quality tests before shipment. Custom fiber types, core counts and sheath colors are supported. Welcome global buyers to inquire about samples and quotations on Made-in-China.
