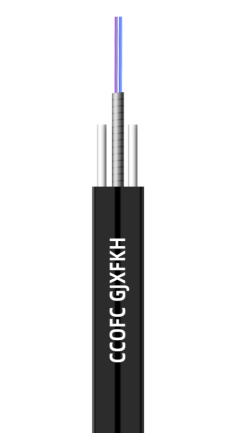

GJXFKH Indoor Armored Drop Cable is a high-performance fiber optic cable designed for indoor wiring and FTTH projects. Built with a stainless steel tube armor and tensile strength members, it delivers exceptional mechanical protection while maintaining flexibility for easy installation in complex environments.

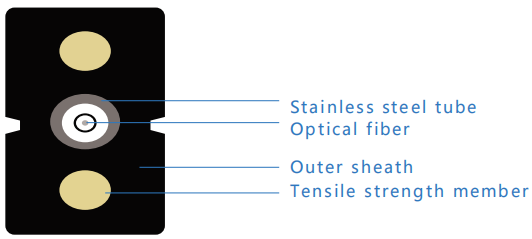

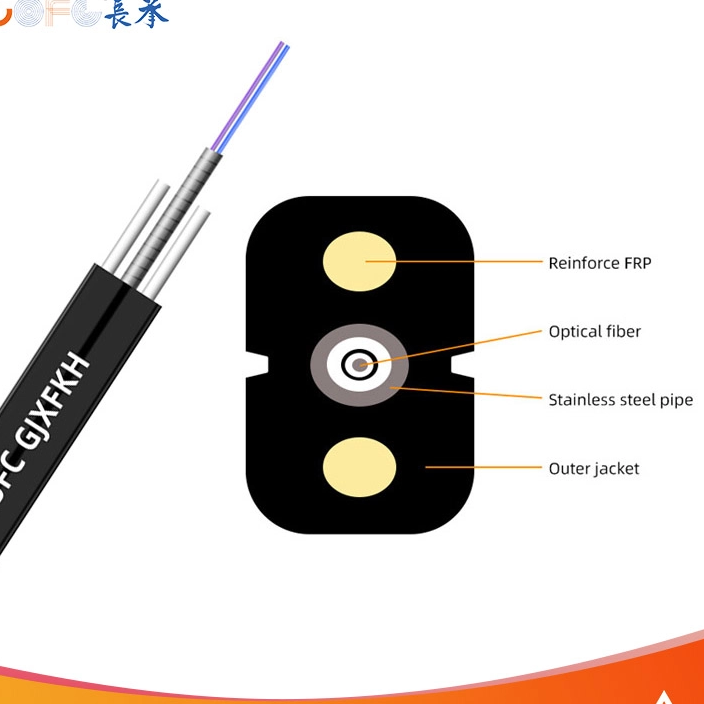

l Stainless steel tube: Compact armor for crush and bend protection
l Optical fiber: Core element for low-loss signal transmission
l Outer sheath: LSZH flame-retardant jacket for indoor safety
l Tensile strength member: High-strength component for installation stability
l Strong Mechanical Protection
Stainless steel tube armor defends the fiber against crushing, bending and impacts, suitable for indoor and semi-outdoor use.
l Flexible & Easy Installation
Compact, lightweight design enables quick deployment in buildings, cable trays and equipment rooms.
l Customizable Options
Supports single-mode (G.657 series) or multi-mode fibers with LSZH sheathing; custom specs are available for project needs.
Parameter | GJXFKH |
Outer Dimension | 3.2 × 2.1 ± 0.2 mm |
Max Tensile Load (Short/Long Term) | 300 N / 200 N |
Crush Resistance | 3000 N/100 mm |
Fiber Type | Single-mode/Multi-mode (customizable) |
Sheathing Material | LSZH |
l FTTH/FTTX indoor wiring
l Building backbone cabling
l Equipment room connections
l Short-distance optical links
