Views: 0 Author: Site Editor Publish Time: 2026-06-05 Origin: Site
GJYXCH is a typical self-supporting aerial FTTH drop optical fiber cable specially engineered for outdoor overhead wiring deployment in fiber-to-the-home projects. Equipped with integrated messenger wire and metallic phosphated steel strength members, this cable removes extra suspension accessories during field installation and greatly cuts construction cost & working hours for global telecom operators, system integrators and FTTH engineering contractors.

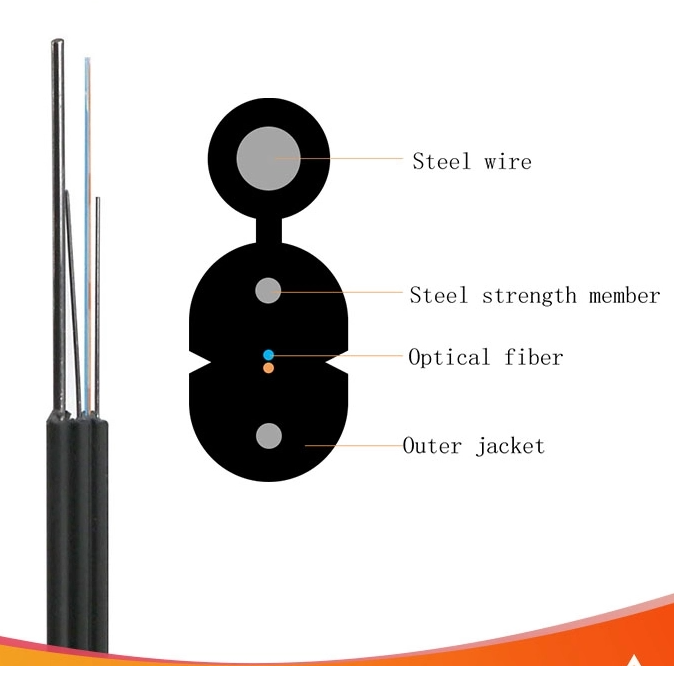

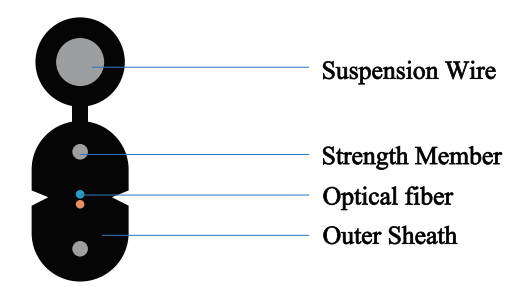

Internal Structure & Components
l Optical fiber: 1/2/4 cores available, natural or color-coded for easy splicing
l LSZH Outer Sheath: Black flame-retardant low-smoke-zero-halogen jacket for populated districts & overhead routing
l Strength member: 0.4mm phosphated steel for tension protection of fibers
l Suspension Wire: Made of phosphated steel with 0.9mm diameter, serving as self-supporting hanging component for pole-mounted aerial laying to bear cable dead weight and outdoor wind load
l All GJYXCH cables are produced strictly following ISO and international telecommunication industry standards.
l Qualified certified raw materials including phosphated steel wire and LSZH compound are adopted for stable product performance.
l Every finished cable passes complete tensile, crush and anti-aging tests.
l Customization available: customized fiber type (G652D/G657A1/A2), non-standard cable length and special specs for bulk wholesale orders from global distributors & project purchasers.
Parameter | GJYXCH |
Core Count | 1 / 2 / 4 Cores |
Messenger Wire | Phosphated Steel, Φ0.9mm |
Central Strength Member | Phosphated Steel, Φ0.4mm |
Outer Jacket | Black LSZH material |
Cable OD (without messenger) | 2.0±0.1mm / 3.0±0.1mm |
Min. Bending Radius | Static:15mm; Dynamic:30mm |
Short-term Tensile Load | 600N |
Short-term Crush Resistance | 2200N/100mm |
Cable Weight | 17.6kg/km(1C),17.7kg/km(2C),17.8kg/km(4C) |
Operating Temperature | -5℃ ~ +50℃, compliant with IEC 60794-1-2 F1 standard |
l FTTH last-mile overhead access cabling for fiber-to-home construction
l Outdoor fiber interconnection between separate buildings and residential compounds
l Rural telecom network upgrading & rural broadband infrastructure rollout
l Small-capacity private network and local area network outdoor wiring
l Telecom infrastructure projects in South America, Central Asia and Southeast Asia
