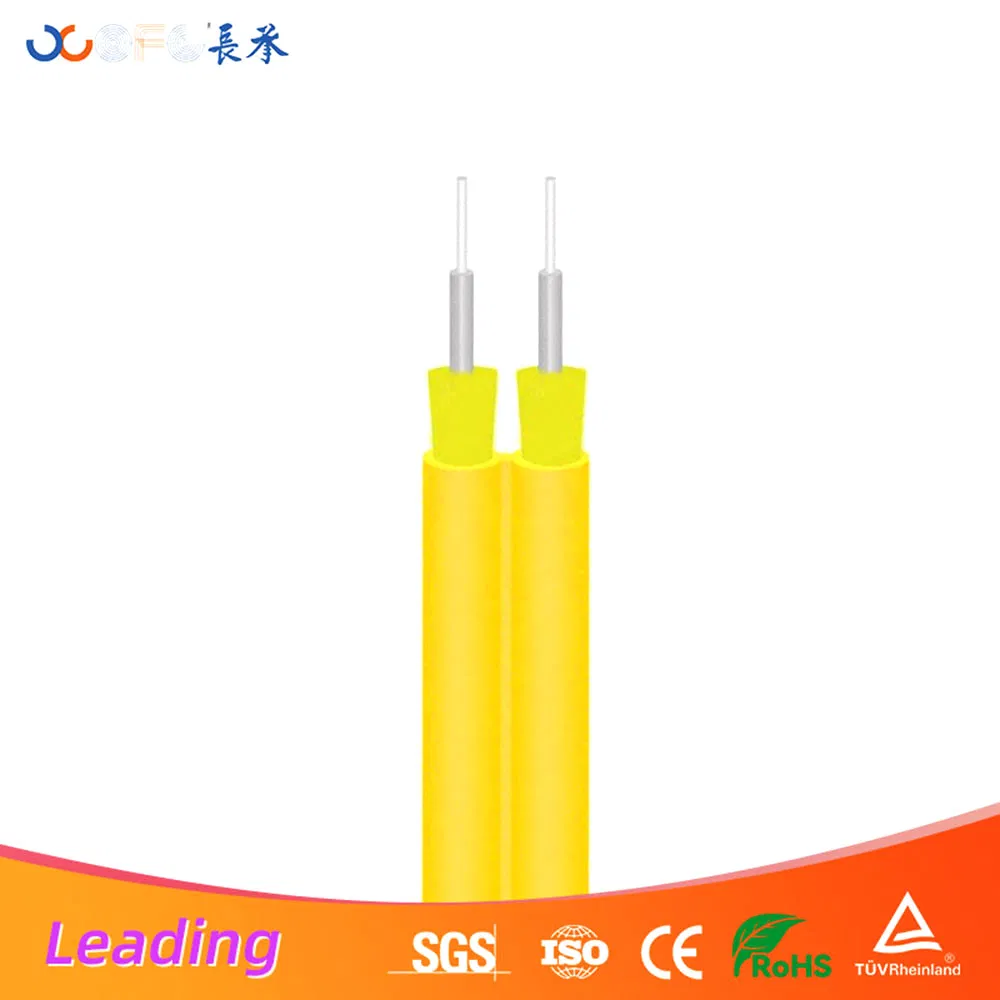

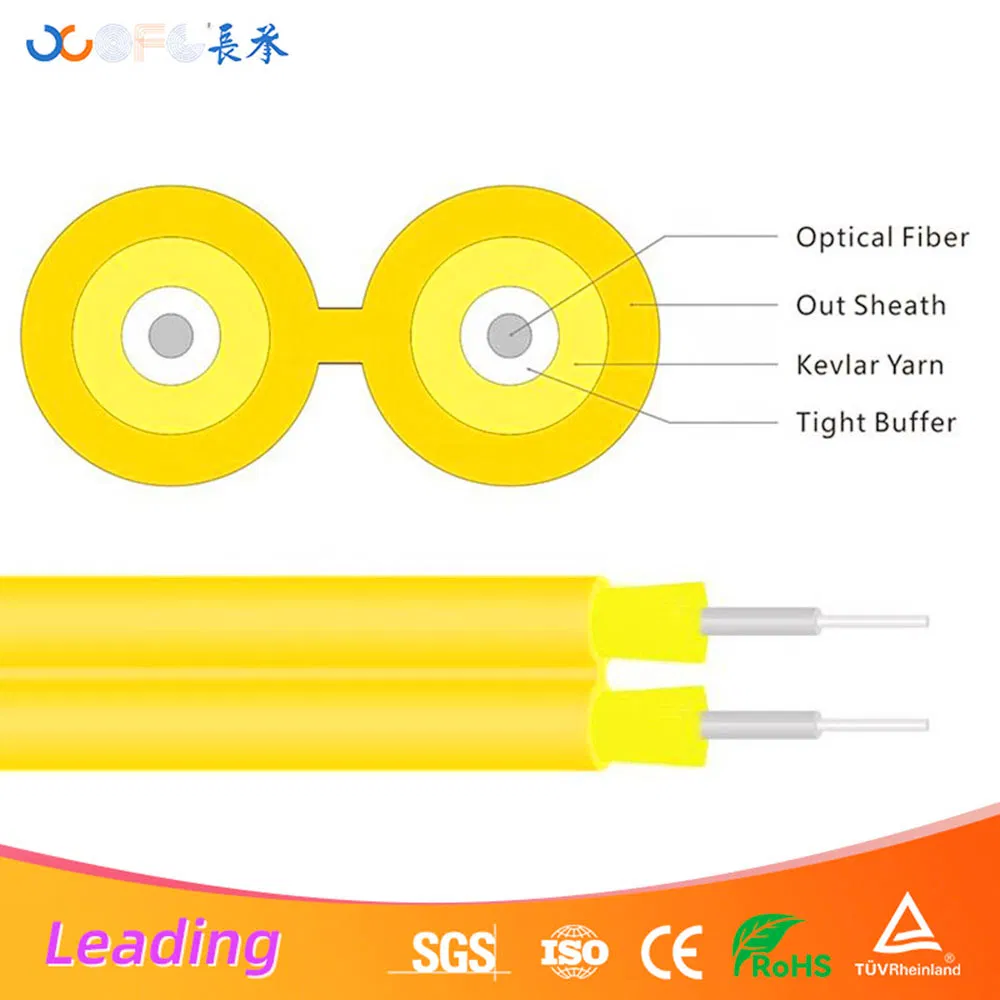

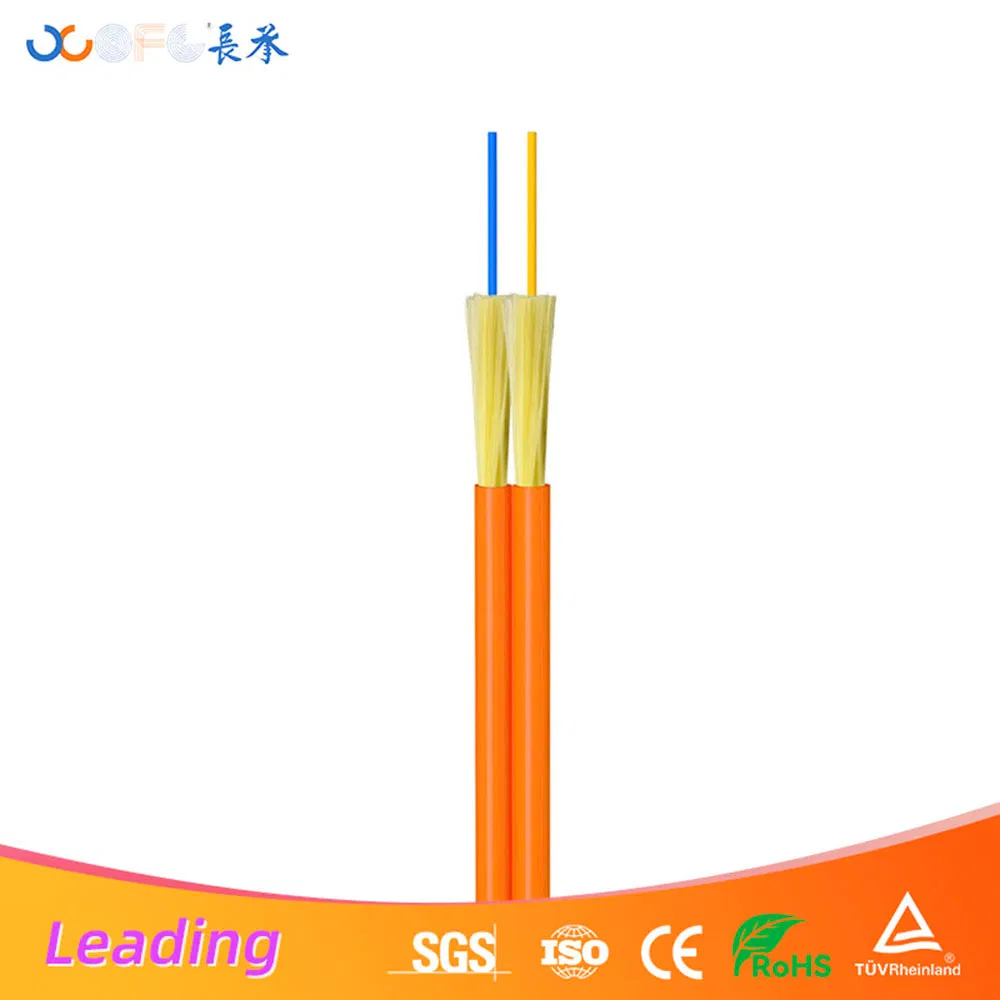

GJFJBV duplex optical cable is made of Φ900µm tightly sheathed optical fiber as the optical transmission medium, covered with a layer of aramid as the stress-reinforcing unit, and extruded with a sheath of polyvinyl chloride (PVC) or low smoke and halogen-free material (LSZH, low smoke, halogen-free, flame retardant).
PRODUCT APPLICATIONS AND LAYING METHODS
• Fiber optic movable connection patch cords or pigtails
• Indoor shaft level and forced ventilation level cabling
• Interconnection of instruments, communication equipment
Product Parameters
TECHNICAL PARAMETERS |
Product Name | Duplex Indoor Optical Cable |
Product Type | Indoor Duplex Tight-Buffered Fiber Optic Cable |
Primary Function | High-Speed Data Transmission For Indoor Network Installations And Building Cabling Systems |
Core Applications | Office Networking, Data Center Connections, Fiber-To-The-Desk Installations, Patch Cord Manufacturing, LAN Infrastructure |
Flame Resistance | Meets International Fire Safety Standards; LSZH Version Provides Low Smoke And Zero Halogen Emission |
Installation Method | Easy Routing Through Conduits, Cable Trays, Or Surface Mounting; Simple Connector Termination |
CABLE MECHANICAL CHARACTERISTIC | |
Cable Type | Cable
Outer Dia
(mm) | Cable Weight
(kg/km) | Minimum Bending radius(mm) | Maximun Allowable Tensile Strength(N) | Minimum Allowable Crush Load(N/100m) |
Static | Dynamic | Short | Long Term | Short | Long Term |
CC-1.9 | (4.0±0.3)×(1.9±0.3) | 8.6 | 30 | 60 | 200 | 100 | 500 | 100 |
CC-2.8 | (5.8±0.3)×(2.8±0.3) | 14.7 | 30 | 60 | 200 | 100 | 500 | 100 |
