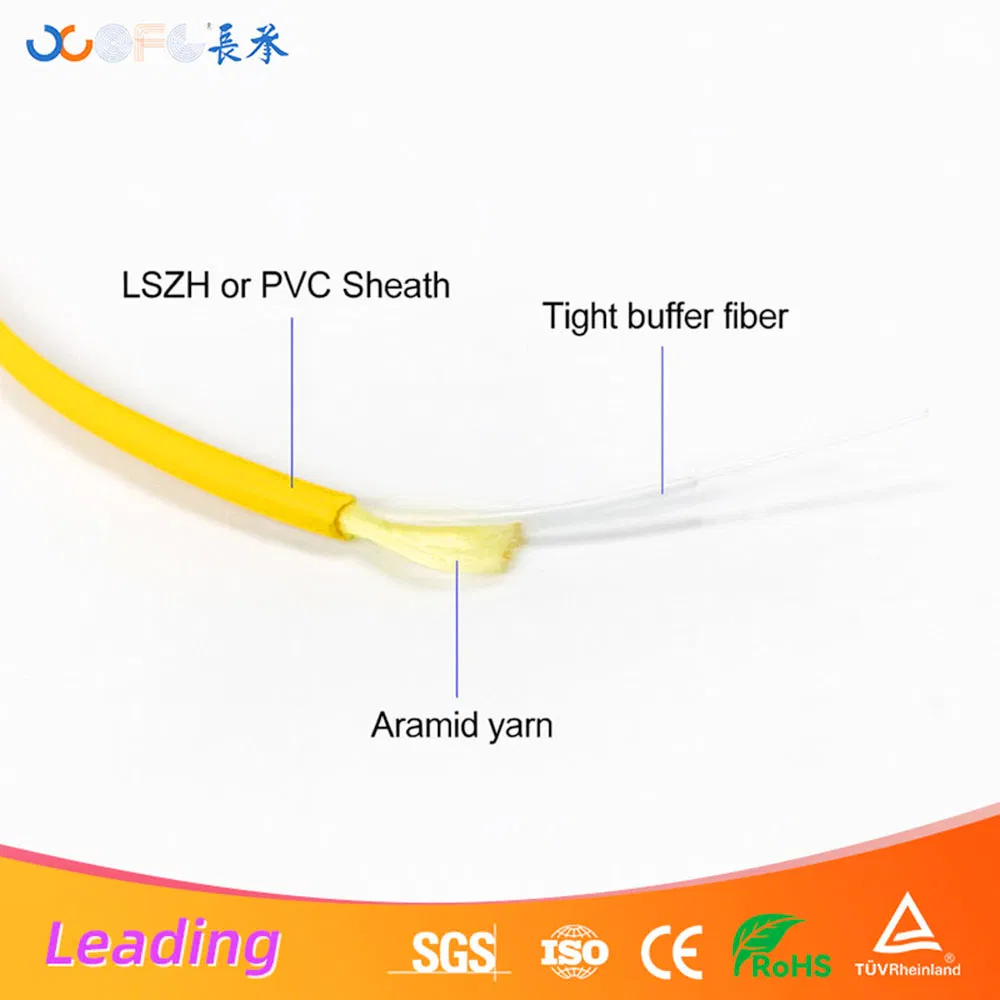

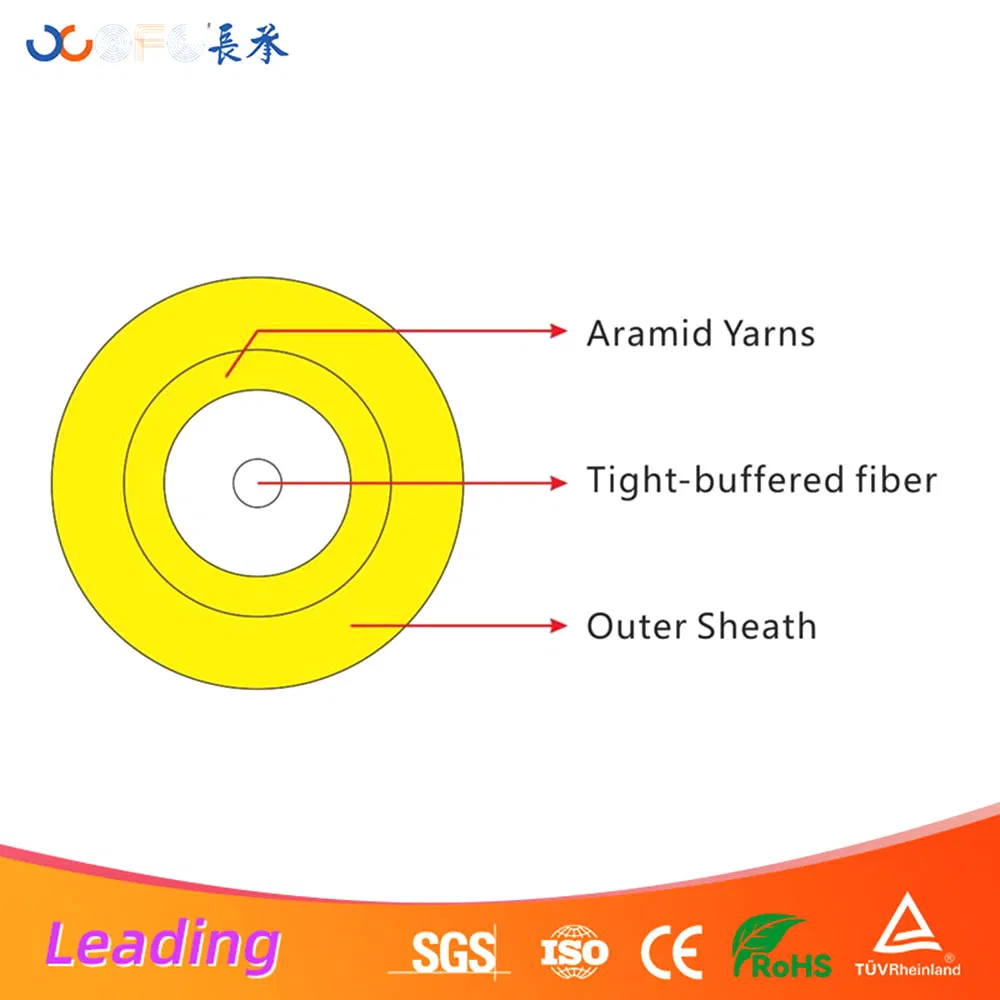

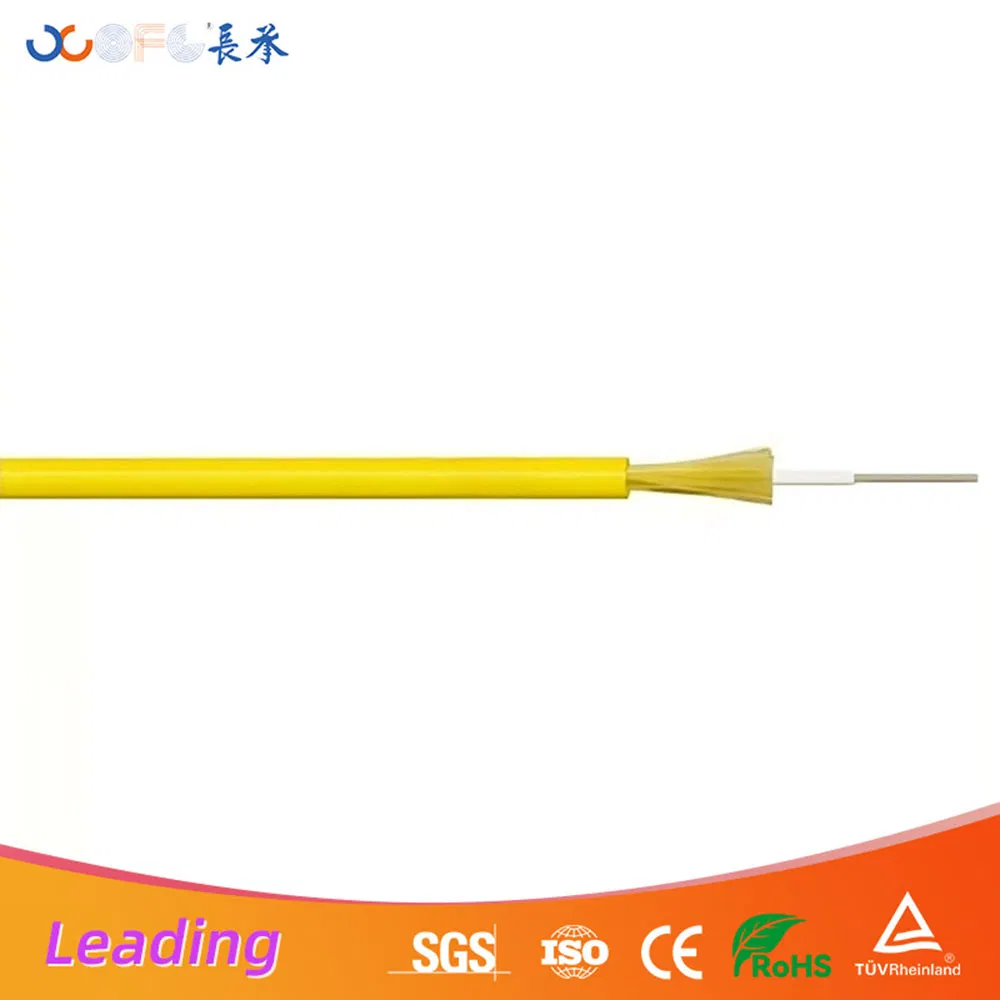

GJFJV single-core optical fiber cable uses a single Φ900μm tightly sheathed optical fiber as the optical transmission medium, covered with a layer of aramid as the force reinforcement unit, and extruded with a layer of polyvinyl chloride (PVC) or low smoke and halogen-free material (LSZH, low smoke, halogen-free, flame retardant) sheath.
PRODUCT APPLICATIONS AND LAYING METHODS
• Fiber optic movable connection patch cords or pigtails
• Indoor shaft level and forced ventilation level cabling
• Interconnection of instruments, communication equipment
Product Parameters
TECHNICAL PARAMETERS |
Product Name | Single-Core Indoor Optical Cable |
Product Type | Indoor Simplex Tight-Buffered Fiber Optic Cable |
Primary Function | High-Speed Data Transmission For Indoor Network Installations And Building Cabling Systems |
Core Applications | Office Networking, Data Center Connections, Fiber-To-The-Desk Installations, Patch Cord Manufacturing, LAN Infrastructure |
Flame Resistance | Meets International Fire Safety Standards; LSZH Version Provides Low Smoke And Zero Halogen Emission |
Installation Method | Easy Routing Through Conduits, Cable Trays, Or Surface Mounting; Simple Connector Termination |
CABLE MECHANICAL CHARACTERISTIC |
Cable Outer Dia(MM) | Cable Weight(KG/KM) | Minimum Bending Radius(MM) | Maximum Allowable Tensile Strength(N) | Minimum Allowable Crush Load(N/100M) |
|
Static | Dynamic | Short | Long Term | Short | Long Term |
2 | 3.2 | 20 | 40 | 100 | 60 | 500 | 100 |
2.5 | 5 | 25 | 50 | 100 | 60 | 500 | 100 |
2.8 | 6.9 | 28 | 56 | 100 | 60 | 500 | 100 |
3 | 10 | 30 | 60 | 100 | 60 | 500 | 100 |
