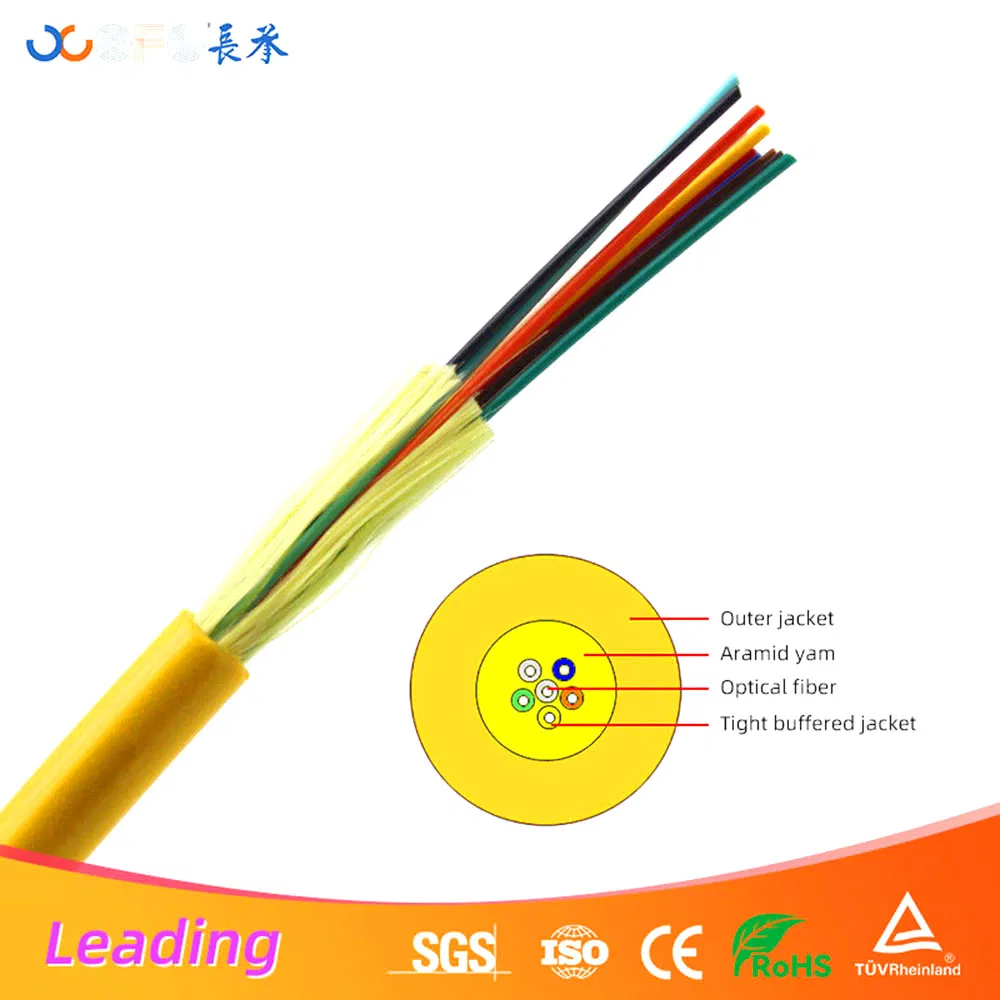

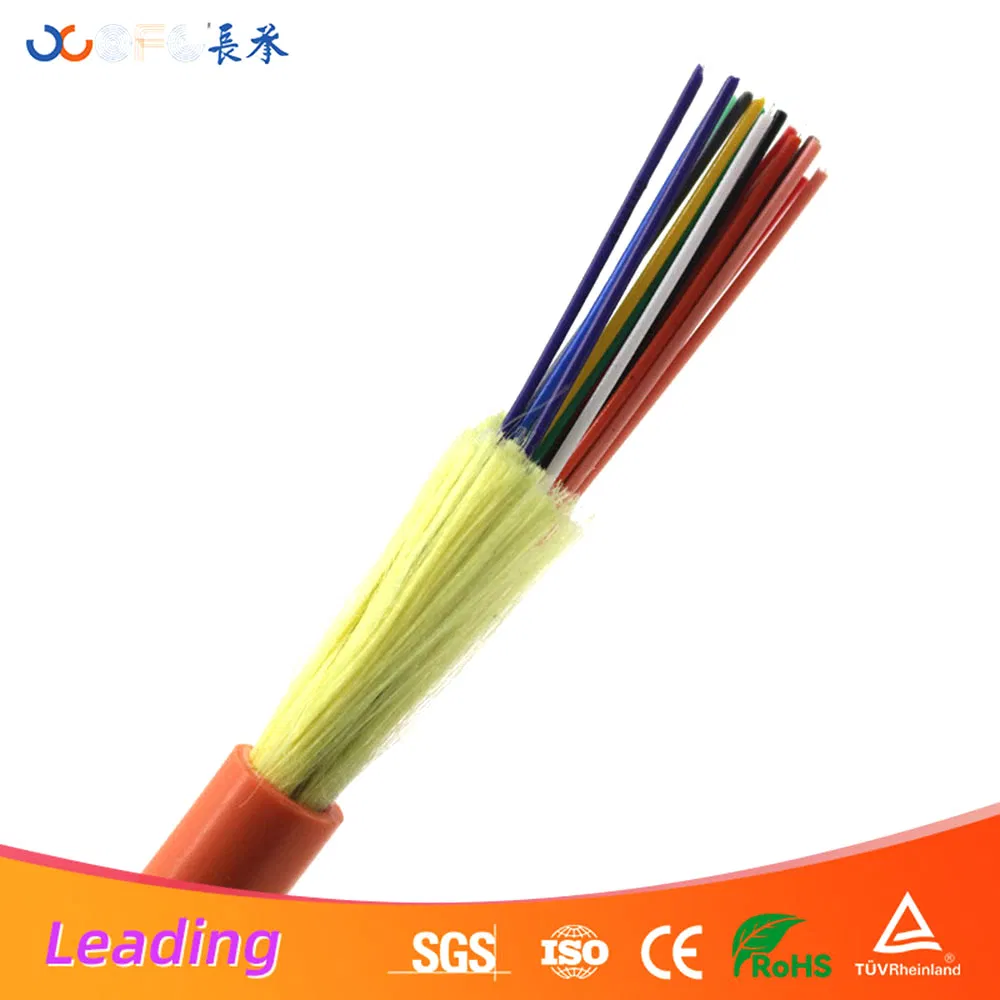

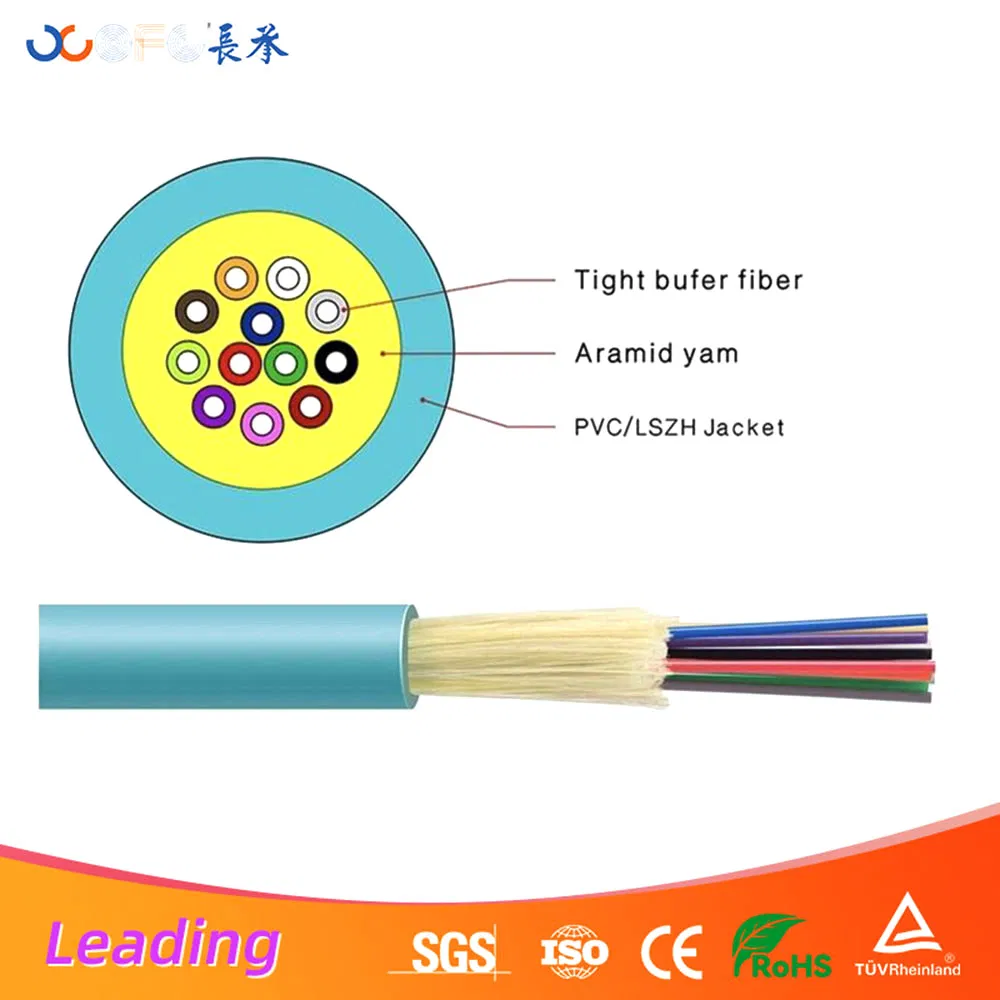

GJPFJH multi-purpose cabling cable uses multiple Φ900µm flame retardant tightly sheathed optical fibers as the optical transmission medium, covered with a layer of aramid as the load-bearing reinforcement unit and sheathed with a layer of polyvinyl chloride (PVC) or low smoke and halogen free material (LSZH, low smoke, halogen free, flame retardant).
PRODUCT APPLICATIONS AND LAYING METHODS
• Integrated indoor cabling
• Fiber optic cable as the backbone of the building
• Multi-core fiber optic movable connection patch cords
Product Parameters
TECHNICAL PARAMETERS |
Product Name | Multi-core Indoor Cabling Cable GJPFJH |
Product Type | Indoor Multi-core Tight-Buffered Fiber Optic Cable |
Primary Function | High-Speed Data Transmission For Indoor Network Installations And Building Cabling Systems |
Core Applications | Office Networking, Data Center Connections, Fiber-To-The-Desk Installations, Patch Cord Manufacturing, LAN Infrastructure |
Flame Resistance | Meets International Fire Safety Standards; LSZH Version Provides Low Smoke And Zero Halogen Emission |
Installation Method | Easy Routing Through Conduits, Cable Trays, Or Surface Mounting; Simple Connector Termination |
CABLE MECHANICAL CHARACTERISTIC |
Fiber Number | Cable
Outer Dia
(mm) | Cable Weight
(kg/km) | Minimum Bending radius(mm) | Maximum Allowable Tensile Strength(N) | Minimum Allowable Crush Load(N/100m) |
Static | Dynamic | Short | Long Term | Short | Long Term |
04F | 4.8±0.3 | 18 | 10D | 20D | 440 | 130 | 1000 | 300 |
06F | 5.1±0.3 | 23 | 10D | 20D | 440 | 130 | 1000 | 300 |
08F | 5.6±0.3 | 31 | 10D | 20D | 440 | 130 | 1000 | 300 |
12F | 6.2±0.3 | 36 | 10D | 20D | 440 | 130 | 1000 | 300 |
24F | 8.1±0.3 | 57 | 10D | 20D | 660 | 200 | 1000 | 300 |
