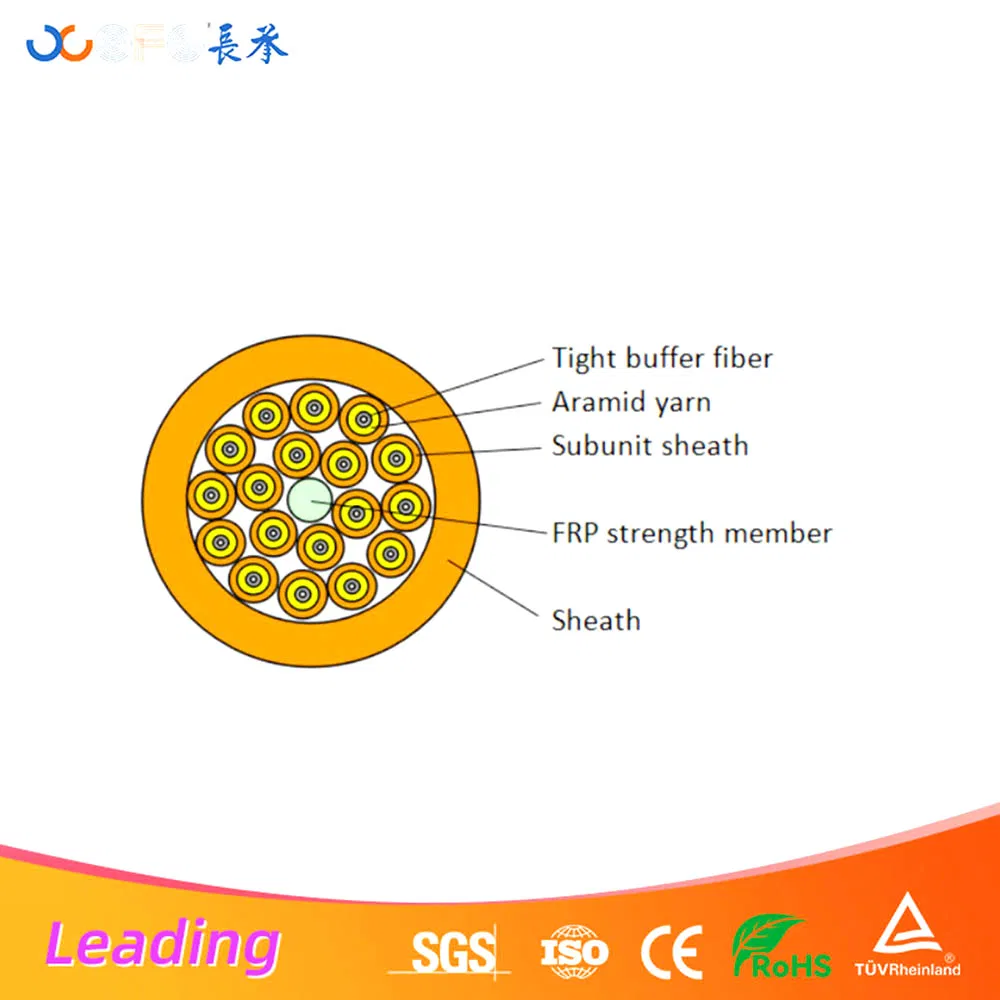

The GJBFJVH multi-purpose breakout tight buffer cable uses a single core (Φ900µm tightly sheathed optical fibre, aramid reinforcement) as a sub-unit, with a non-metallic central reinforcement core, the sub-units of the cable are twisted around the central reinforcement core to form the core, and the outer layer is extruded with a polyvinyl chloride (PVC) or low smoke and halogen free (LSZH, low smoke, halogen free, flame retardant) sheath.
PRODUCT APPLICATIONS AND LAYING METHODS
• Integrated indoor cabling
• Fiber optic cable as the backbone of the building
Product Parameters
TECHNICAL PARAMETERS |
Product Name | Multi-core Indoor Branch Cable GJBFJVH |
Product Type | Indoor Multi-core Tight-Buffered Fiber Optic Cable |
Primary Function | High-Speed Data Transmission For Indoor Network Installations And Building Cabling Systems |
Core Applications | Office Networking, Data Center Connections, Fiber-To-The-Desk Installations, Patch Cord Manufacturing, LAN Infrastructure |
Flame Resistance | Meets International Fire Safety Standards; LSZH Version Provides Low Smoke And Zero Halogen Emission |
Installation Method | Easy Routing Through Conduits, Cable Trays, Or Surface Mounting; Simple Connector Termination |
CABLE MECHANICAL CHARACTERISTIC | |
Fiber Number | Cable
Outer Dia
(mm) | Cable Weight
(kg/km) | Minimum Bending radius(mm) | Maximum Allowable Tensile Strength(N) | Minimum Allowable Crush Load(N/100m) |
Static | Dynamic | Short | Long Term | Short | Long Term |
08F | 9.8±0.5 | 101 | 10D | 20D | 660 | 200 | 1000 | 300 |
12F | 12.4±0.5 | 155 | 10D | 20D | 660 | 200 | 1000 | 300 |
18F | 12.4±0.5 | 155 | 10D | 20D | 1320 | 400 | 1000 | 300 |
24F | 14.4±0.5 | 201 | 10D | 20D | 1320 | 400 | 1000 | 300 |
36F | 16.4±0.5 | 255 | 10D | 20D | 1320 | 400 | 1000 | 300 |
48F | 19±0.5 | 344 | 10D | 20D | 1320 | 400 | 1000 | 300 |
