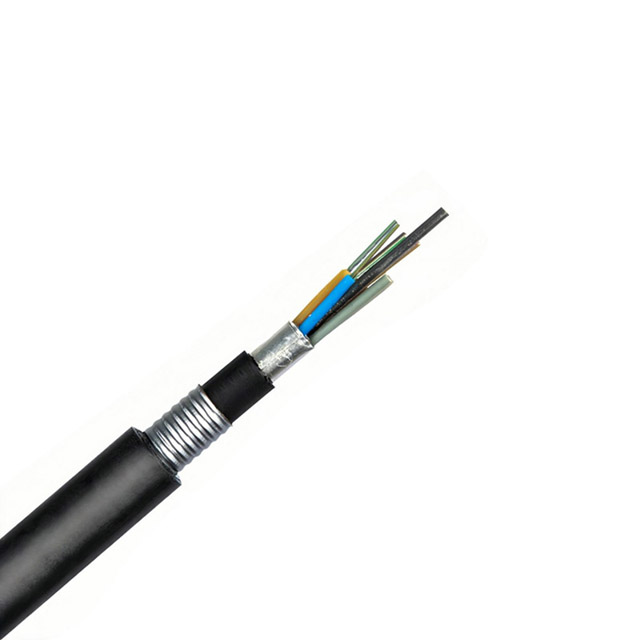

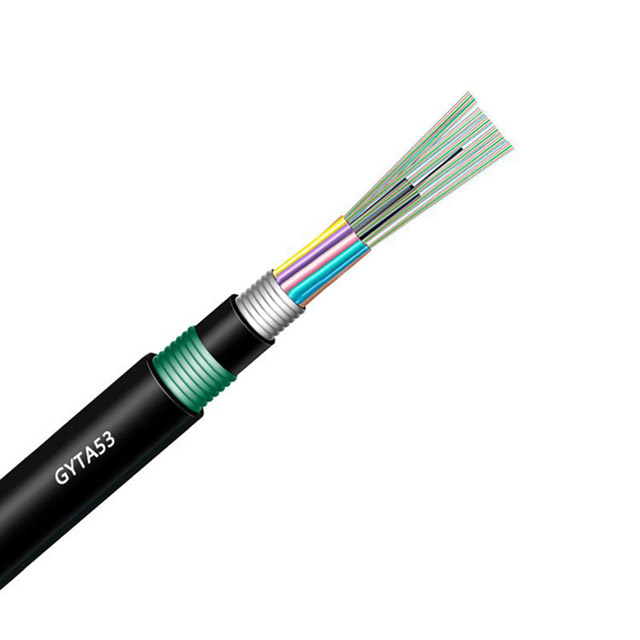

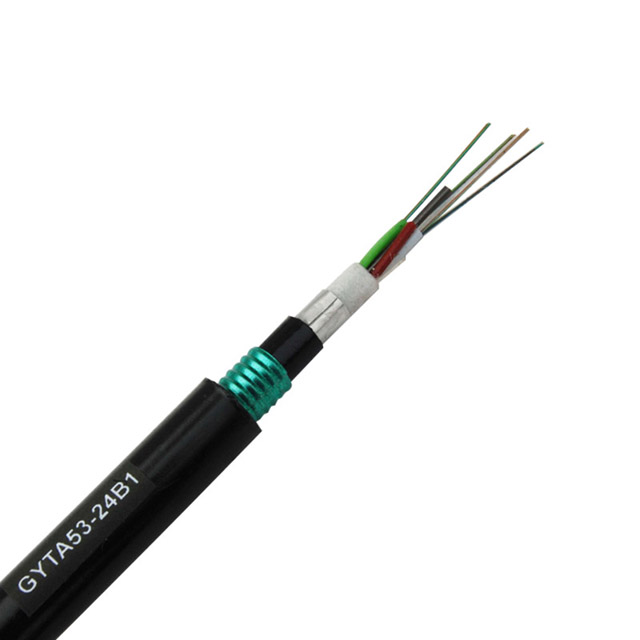

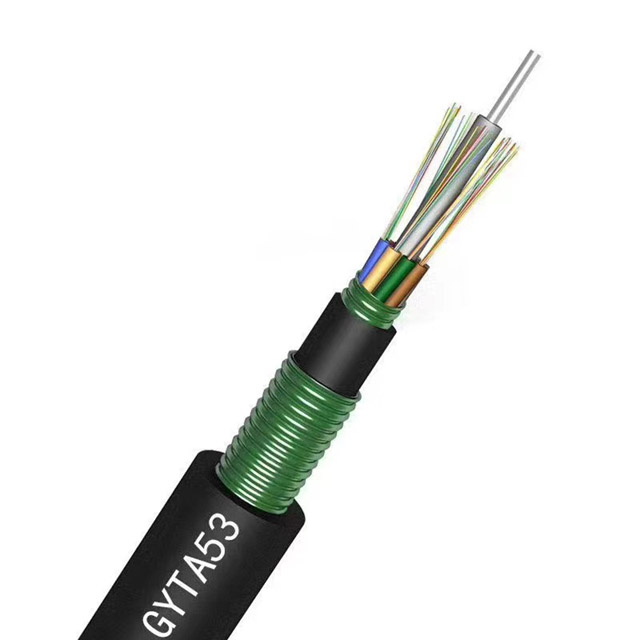

Loose Tube Double Armored Double Jacket Optical Cable GYTA53


Availability:

Quantity:

Inquire Add to Basket

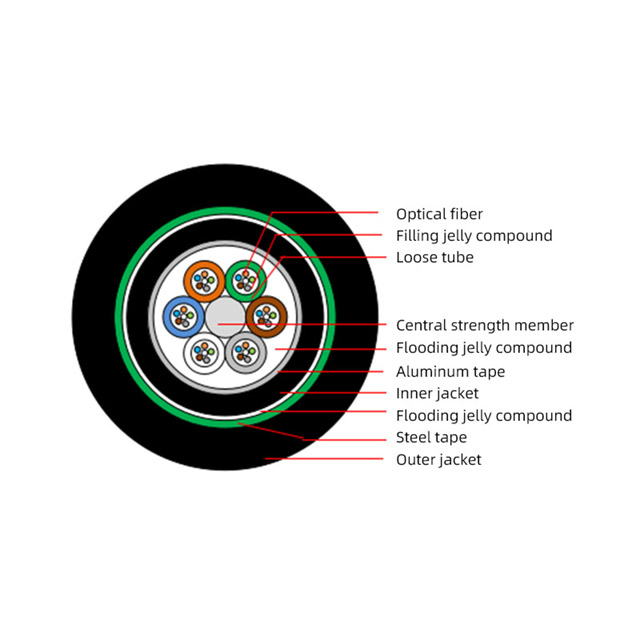

The GYTA53 fibre optic cable is constructed by placing a 250µm fibre optic cable in a high modulus material pine tube, which is filled with a waterproof compound. At the centre of the core is a metal reinforcement core, which for some cores is also extruded with a layer of polyethylene (PE). The loose sleeving (and filler rope) is twisted around the central reinforcement to form a compact and rounded core with gaps filled with a water-blocking filler. Plastic coated aluminium tape (APL) is wrapped longitudinally and then extruded with a layer of polyethylene.

Indoor/Outdoor Optical Fiber Cable FTTH Optical Fiber Drop Cable ADSS optical Fiber Cable Figure8 Optical Fiber Cable Optical Fiber Composite Overhead Ground Wires（OPGW）

Product Description

Product characteristics:

• Very good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• Tube filled with special oil paste for critical protection of the fibres

• Good resistance to compression and flexibility

• The following measures are used to ensure the water resistance of the fibre optic cable:

- Single metal central reinforcement core

- Loose sleeves filled with special waterproofing compounds

- Complete core filling

- Plastic-coated aluminium tape (APL) with a moisture barrier

- Plastic coated steel tape (PSP) on both sides to improve the cable's resistance to moisture

- Good water barrier material prevents longitudinal water penetration

Product applications and laying methods.

1.Outdoor communication system wiring

2. Directly buried

Cable Mechanical characteristic

Fiber Number	Cable Outer Dia (mm)	Cable Weight (kg/km)	Minimum Bending radius(mm)		Maximun Allowable Tensile Strength(N)		Minimum Allowable Crush Load(N/100m)
Fiber Number	Cable Outer Dia (mm)	Cable Weight (kg/km)	Static	Dynamic	Short	Long Term	Short	Long Term
2~36F	13.1	190	164	328	3000	1000	3000	1000
38～72F	14.3	225	179	358	3000	1000	3000	1000
74～96F	15.8	255	198	396	3000	1000	3000	1000
98～120F	17.4	295	218	436	3000	1000	3000	1000
122～144F	18.9	345	237	474	3000	1000	3000	1000
146～216F	18.9	355	237	474	3000	1000	3000	1000
218～288F	21.1	430	264	528	3000	1000	3000	1000
