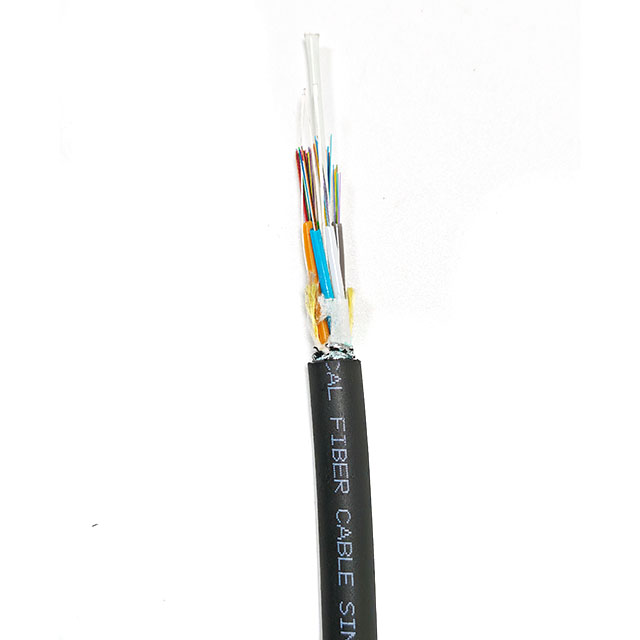

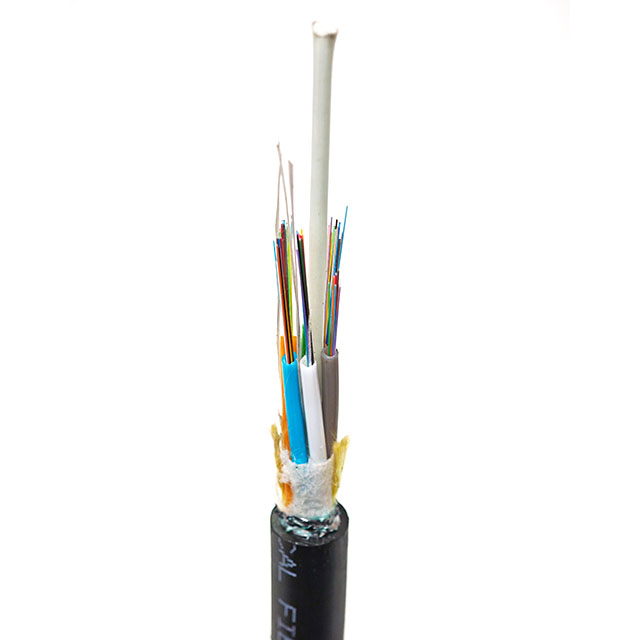

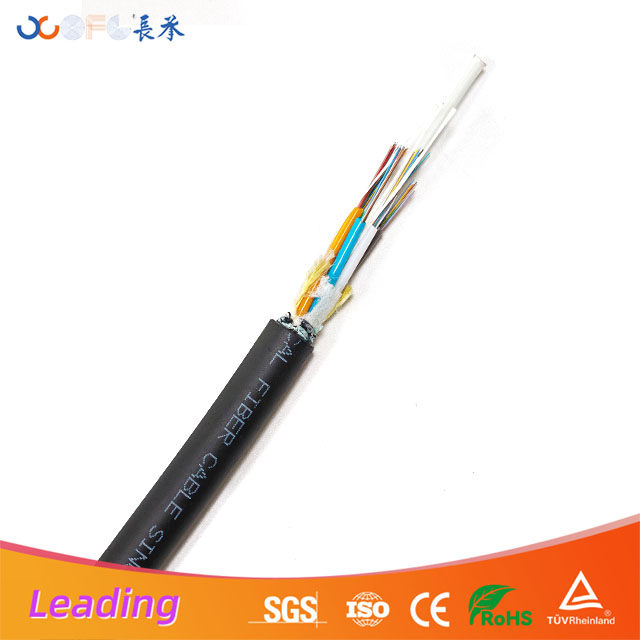

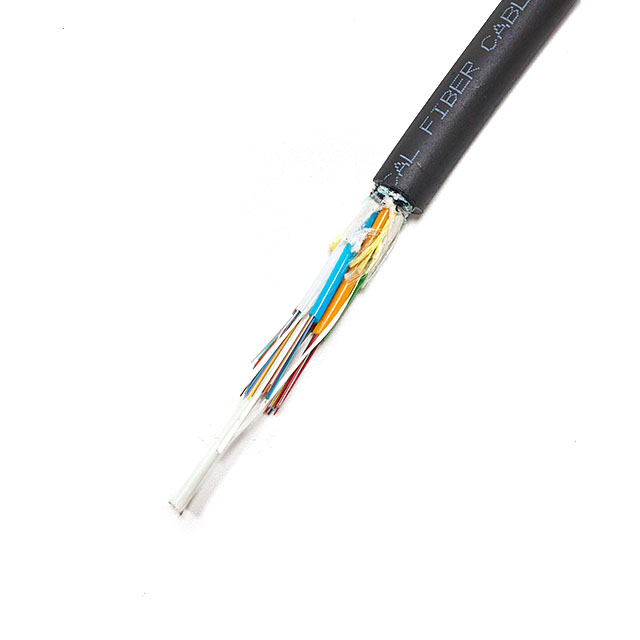

GYFS
CCOFC
Product characteristics
Special waterproof yarn is placed inside the loose tube and cable core to provide critical protection for the optical fiber
The fiber optic cable structure design is very tight
Has good flexibility
Has excellent mechanical and temperature characteristics
Has strong water and moisture resistance properties
The PE outer sheath has strong resistance to ultraviolet radiation and wear resistance
Product applications and laying methods
1. Suitable for long-distance communication and inter office communication
2. Laying methods: overhead, pipeline, direct burial

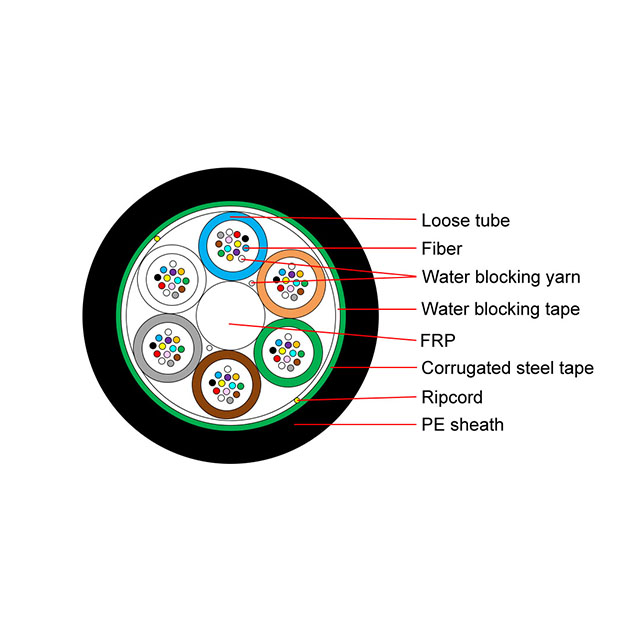

Cable configuration
| Item | Contents | Value | |
24 | 72 | ||
Loose tube
| Material | PBT | |
Diameter(mm)(0.3) | 2.5 | ||
Water blocking element | Water blocking yams | ||
Number | 2 | 6 | |
Max. fiber counts per tube | Number | 12 | |
Filler | Material | PP | |
Number | 4 | 0 | |
Central strength member | Material | FRP | |
Water blocking element | Material | Water blocking yams + Water blocking tape | |
Ripcord | Number | 2 | |
Amor | Material | Corrugated steel tape | |
Outer sheath | Material | MDPE | |
Color | Black | ||
Cable diameter(mm)(士0.5) | 10.5 | 10.5 | |
Cable weight (kg/km)(士20%) | 78 | 78 | |
Note: The outer diameter of the cable in the table is for reference.The actual OD value aftercommissioning production shall prevail.
Mechanical Performance of Cable
Value | Tensile performance(N) | Crush(N/100mm) | |
Core(F) | Long term | Short term | Short term |
24/72 | 800 | 2700 | 2200 |
