Single Jacket All-Dielectric Gel Free Stranded Loose Tube Fiber cable-GYFY


Availability:

Quantity:

Inquire Add to Basket

Model:
GYFY
Brand:
CCOFC

The GYFY outdoor loose tube layer stranded non-metallic optical cable involves inserting optical fibers into loose tubes made of high-modulus PBT material with internal water-blocking yarn. The center of the cable core is a non-metallic reinforcement core, and for certain fiber counts, an additional layer of polyethylene (PE) is extruded around the non-metallic reinforcement core. The loose tubes (and filler yarns) are stranded around the central reinforcement core to form a compact circular cable core. Inside the cable core, water-blocking yarn and water-blocking tape create a dry water-blocking layer. The cable core is then sheathed with polyethylene (PE).

Gel Free Stranded Loose Tube Fiber cable-GYFY Single Jacket All-Dielectric Fiber Cable Indoor/Outdoor Optical Fiber Cable FTTH Optical Fiber Drop Cable Figure8 Optical Fiber Cable

Product Description

Product characteristics

• Properly design and precisely control the fiber slack length in the loose tube, manage the lay length during cable core compounding to ensure optimal fiber slack length in the optical cable, thereby achieving excellent mechanical and thermal performance

• The central reinforcing component adopts a glass fiber-reinforced plastic rod (FRP) with high Young's modulus

• Non-metallic structure, electromagnetic resistant. Lightweight and easy to install, suitable for power systems and lightning-prone areas

• Fully dry structure, convenient for construction

Product applications and laying methods

1. Outdoor communication system wiring

2. Pipeline and overhead laying.

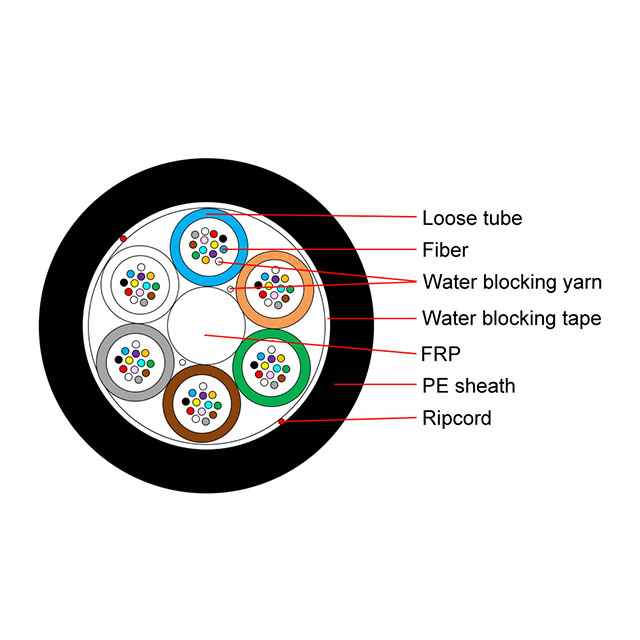

Cable configuration

Item	Contents	Value
		24	72
Loose tube	Material	PBT
	Diameter(mm)(0.3)	2.5
	Water blocking element	Water blocking yams
	Number	2	6
Max. fiber counts per tube	Number	12
Filler	Material	PP
	Number	4	0
Central strength member	Material	FRP
Water blocking element	Material	Water blocking yams + Water blocking tape
Ripcord	Number	2
Amor	Material	Corrugated steel tape
Outer sheath	Material	MDPE
	Color	Black
Cable diameter(mm)(士0.5)		10.5	10.5
Cable weight (kg/km)(士20%)		78	78
