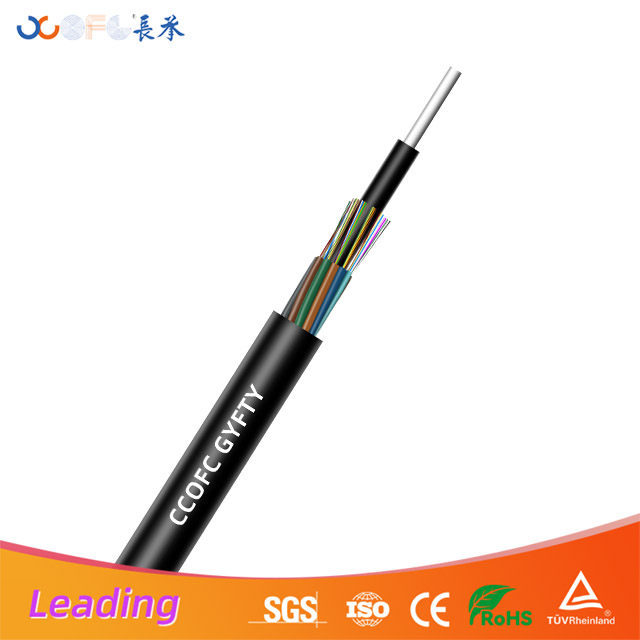

Loose Tube Stranded Non-armoured Fiber Optical Cable-GYFTY


Availability:

Quantity:

Inquire Add to Basket

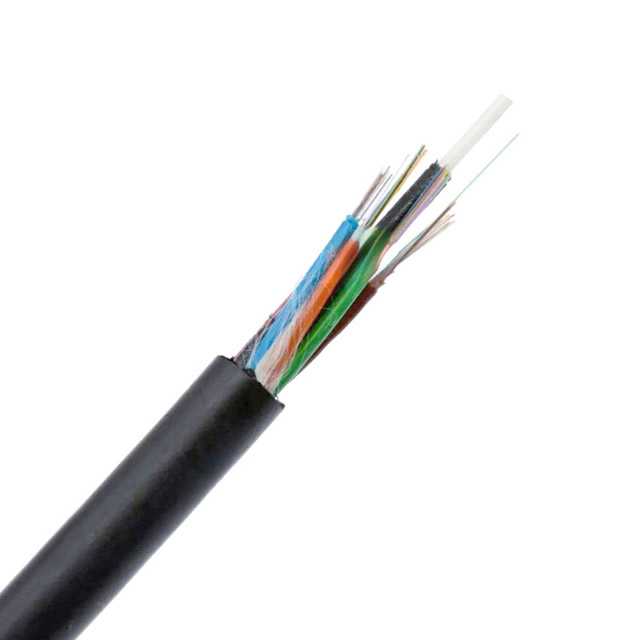

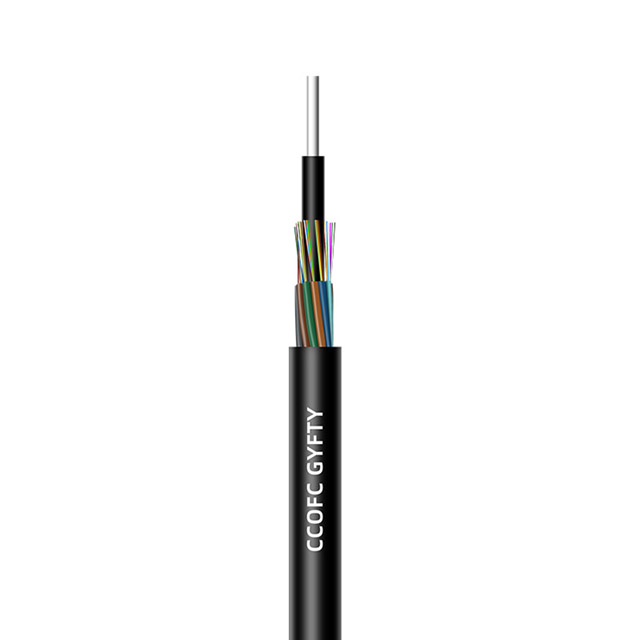

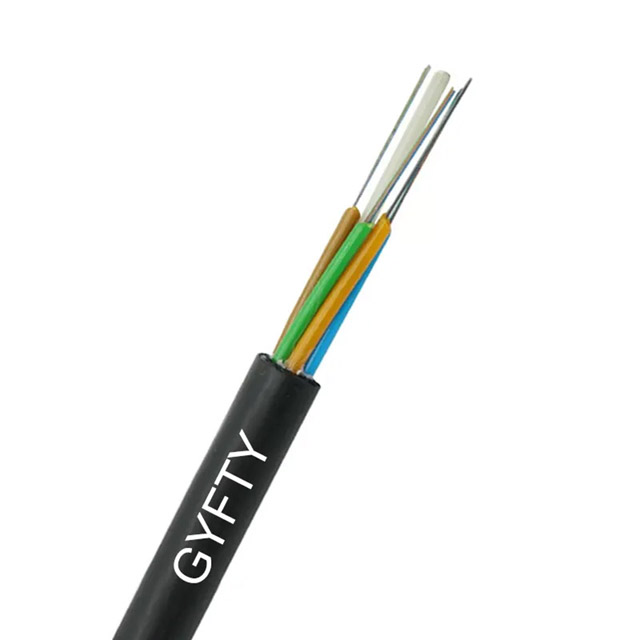

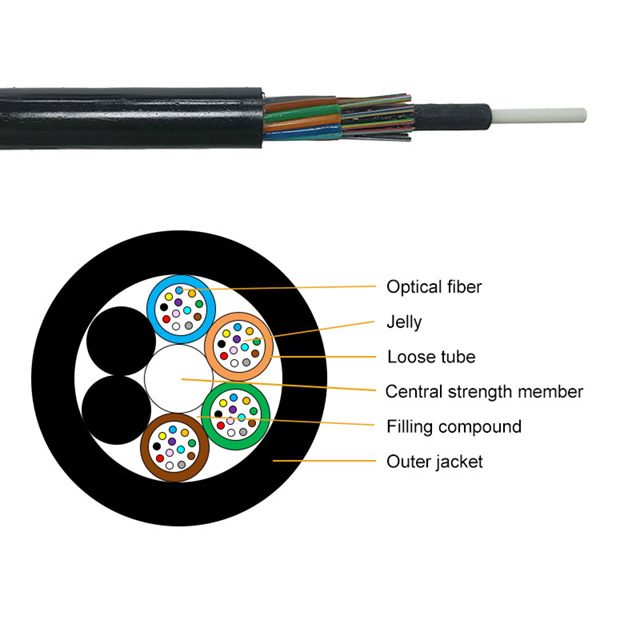

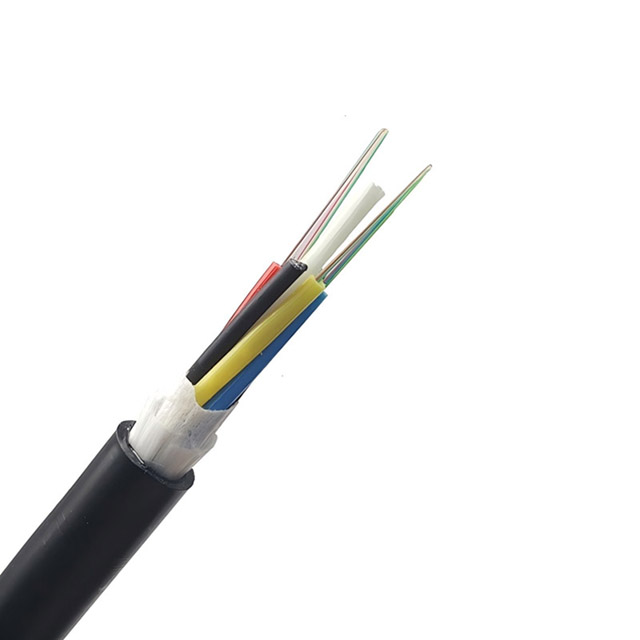

The GYFTY fibre optic cable is constructed with a 250µm fibre optic cable in a high modulus material pine tube filled with a waterproof compound. At the centre of the core is a glass fibre reinforced plastic (FRP) and the loose tube (and filler rope) is twisted around the central reinforcement to form a compact and round core with a water barrier filler in the gaps. A polyethylene sheath is extruded over the core to form the cable.

Indoor/Outdoor Optical Fiber Cable FTTH Optical Fiber Drop Cable ADSS optical Fiber Cable Figure8 Optical Fiber Cable Optical Fiber Composite Overhead Ground Wires（OPGW）

Product Description

Product characteristics:

• Very good mechanical and temperature properties

• good hydrolysis resistance and high strength of the loose tube material itself

• The tube is filled with a special oil paste, which provides critical protection for the optical fibres

• Good resistance to compression and flexibility

• The following measures are used to ensure that the fibre optic cable is watertight.

- Single non-metallic central reinforcement core

- Special waterproofing compounds in the loose sleeves

- Complete core filling

Product applications and laying methods:

1. Outdoor communication system wiring

2. Pipelines, overheads, cable trenches

Cable Mechanical characteristic

Fiber Number	Cable Outer Dia (mm)	Cable Weight (kg/km)	Minimum Bending radius(mm)		Maximun Allowable Tensile Strength(N)		Minimum Allowable Crush Load(N/100m)
Fiber Number	Cable Outer Dia (mm)	Cable Weight (kg/km)	Static	Dynamic	Short	Long Term	Short	Long Term
2~36F	9.9	85	99	198	1500	600	1000	300
38~72F	10.3	90	103	206	1500	600	1000	300
74~96F	11.6	115	116	232	1500	600	1000	300
98~120F	13.0	145	130	260	1500	600	1000	300
122~144F	14.5	175	145	290	2000	600	1000	300
146~288F	16.7	235	167	334	3000	600	1000	300
