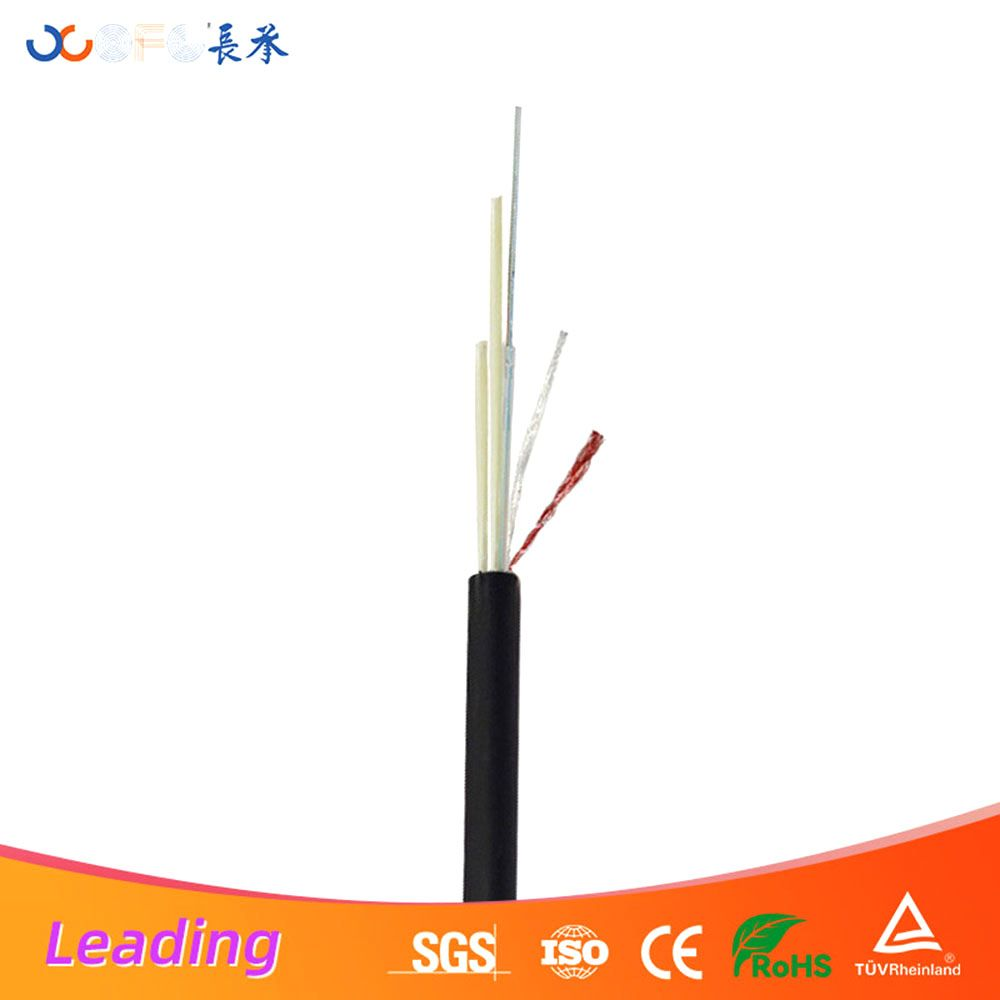

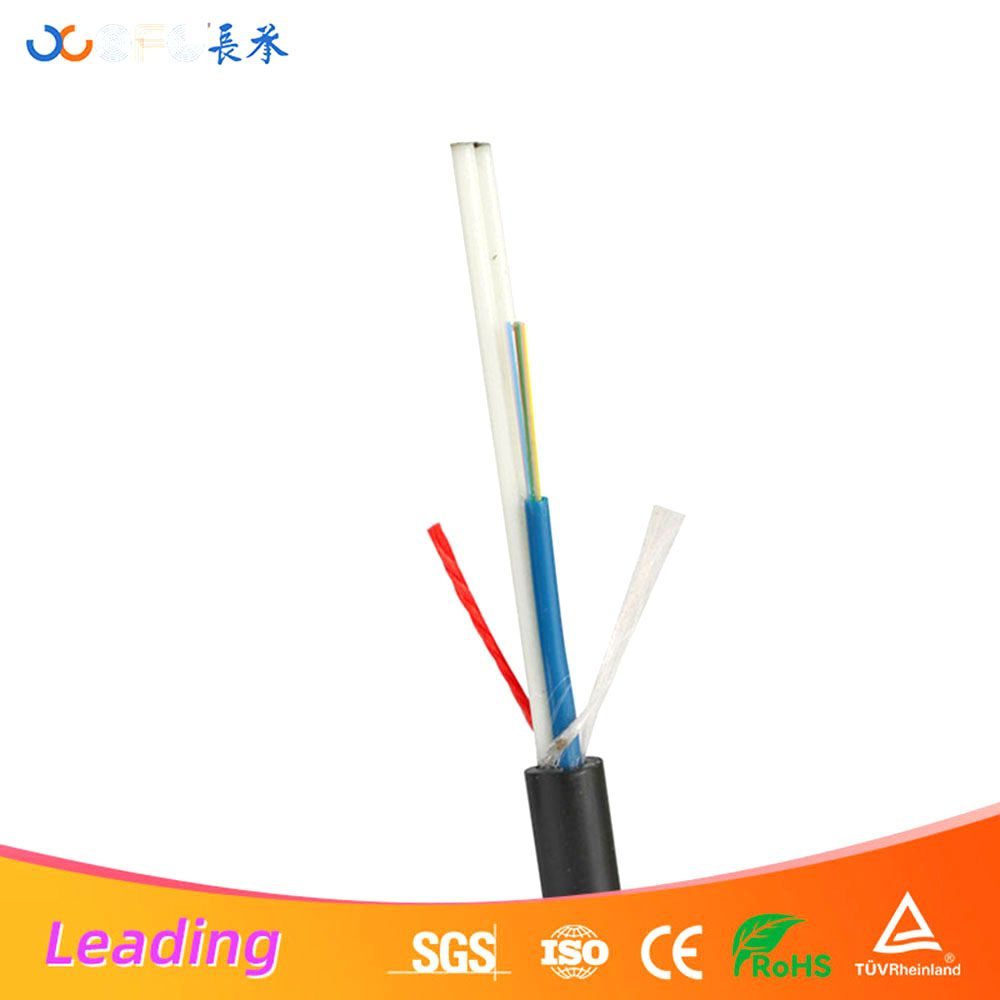

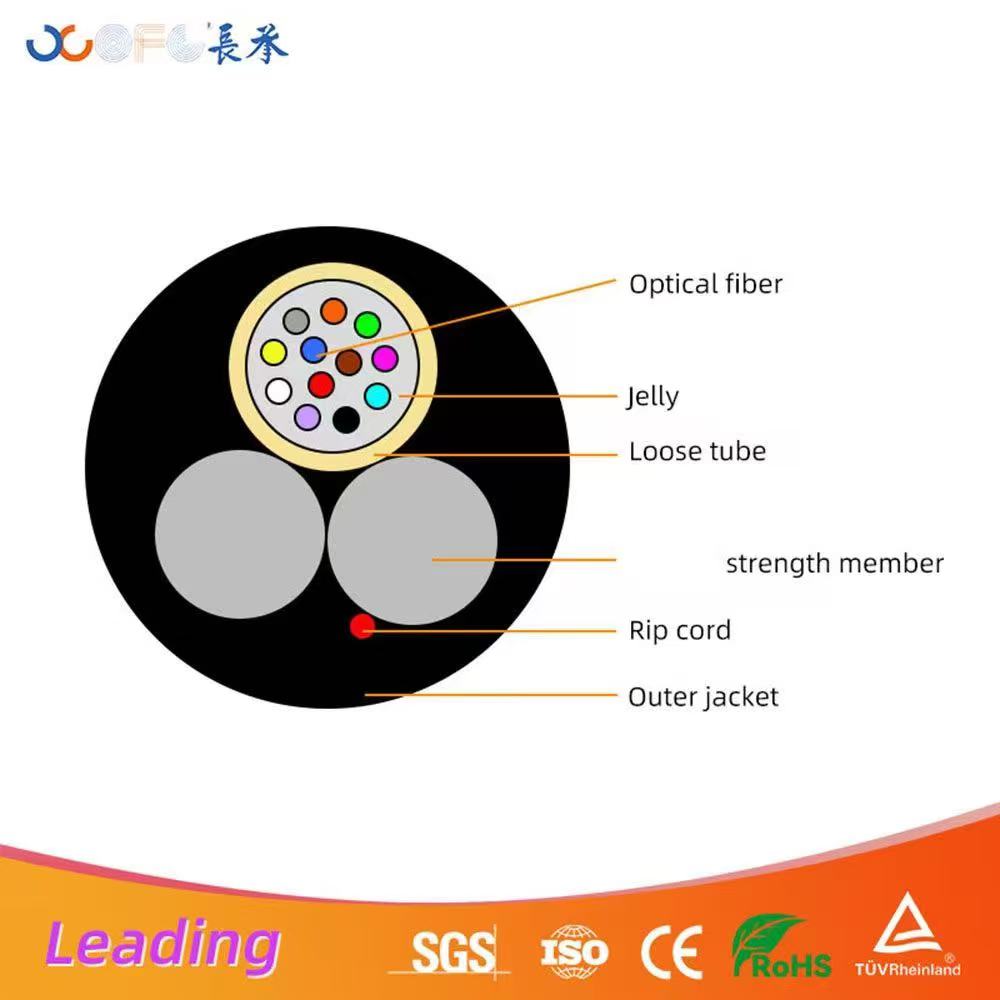

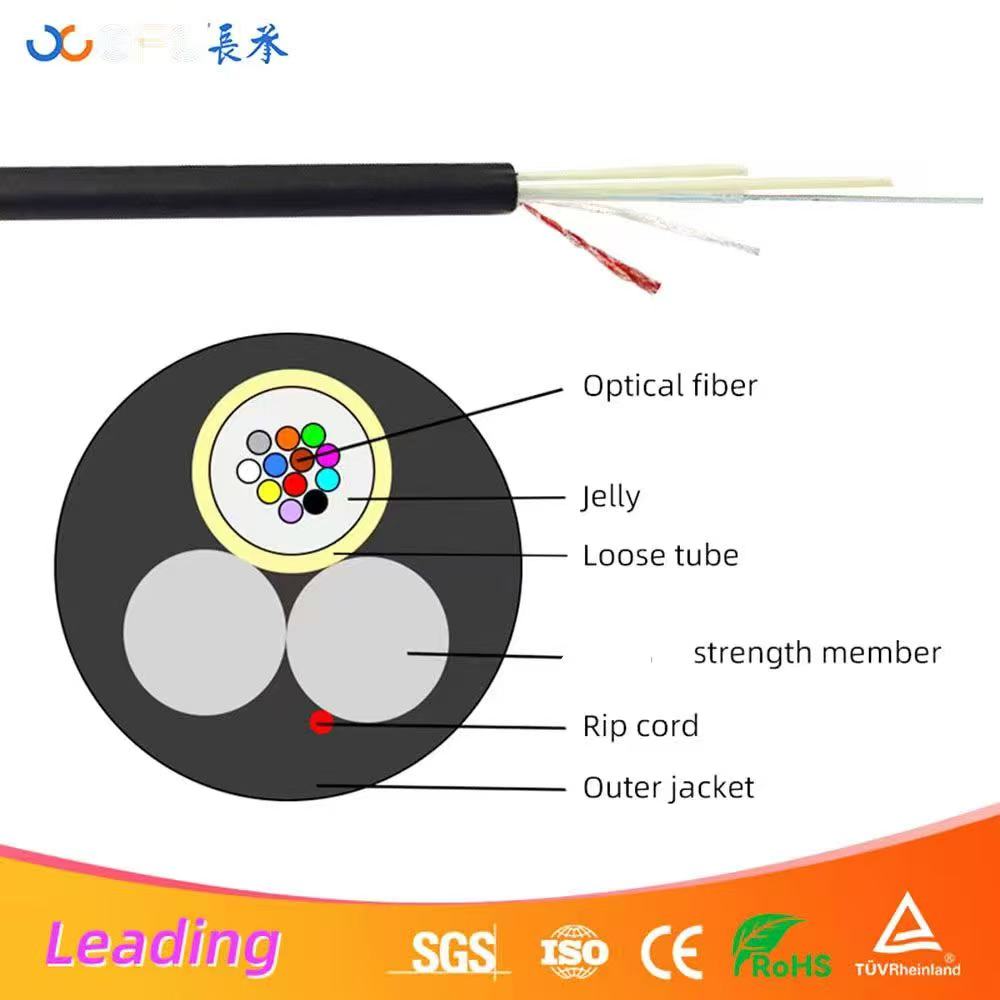

CCOFC's Mini ADSS (ASU) cable is designed for overhead deployments with up to 24 fibers and spans of 120 m or less. Compared with conventional ADSS, it offers a more cost-effective solution for small-capacity, short-span projects.
Its smaller diameter and lighter weight make handling, transport and installation easier, cutting logistics and installation effort. The cable retains the ADSS advantages of all-dielectric construction, no grounding and immunity to electromagnetic interference—ideal for distribution network communication, rural broadband access and campus or branch line overhead cabling.
For specifications and selection guidance, contact CCOFC's sales and technical team.
TECHNICAL PARAMETERS |
Product Name | ASU fiber optic cable |
Alternative Names | ASU Cable , ASU Mini ADSS, Aerial ASU Cable |
Primary Functions | Long distance communication with local area networks |
Main Applications | Overhead and pipeline communication wiring |
Installation Method | Overhead and pipeline laying methods |
Outer Jacket Material | PE |
Cable Color Options | Black (Standard) |
Fiber optic cable model | Loose tube diameter
mm | Cable Diameter
mm | Cable weight
kg/km | Long-term
N | Short term
N |
ASU-2-12Xn | 1.8/2.1 | 6.7±5% | 55 | 1000 | 2000 |
ASU-16-24Xn | 2.2/2.5 | 7.0±5% | 55 | 1000 | 2000 |
