Singlejacket All-dielectric Self-Supporting Fiber Optical Cable-ADSS


Availability:

Quantity:

Inquire Add to Basket

Model:
ADSS
Brand:
CCOFC
Code:
ADSS-SJ

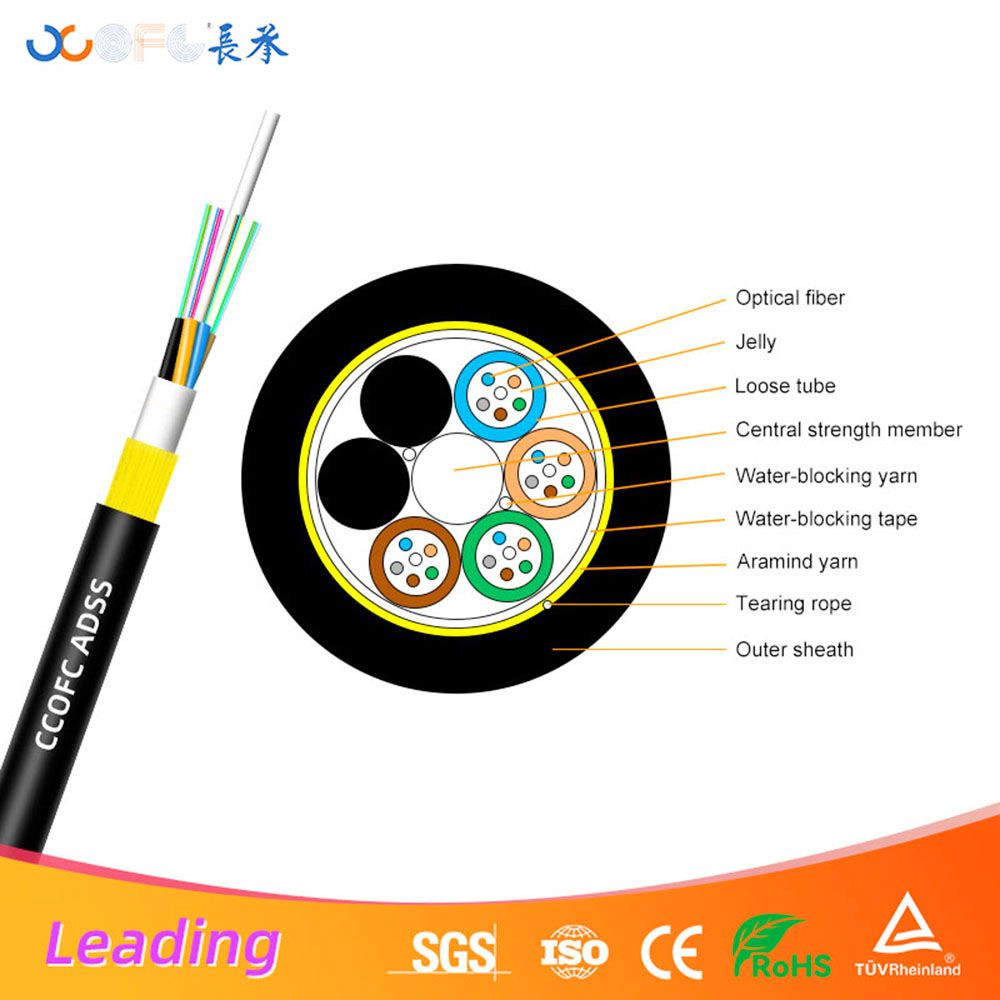

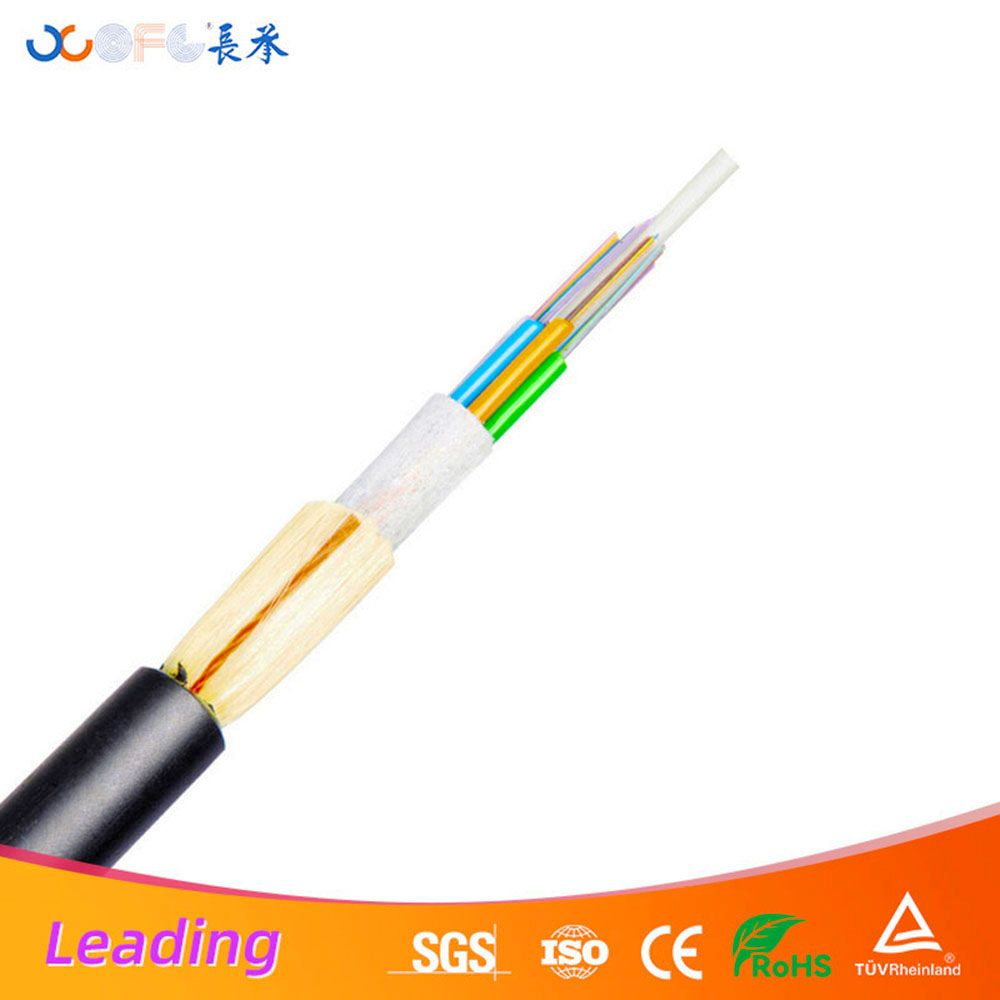

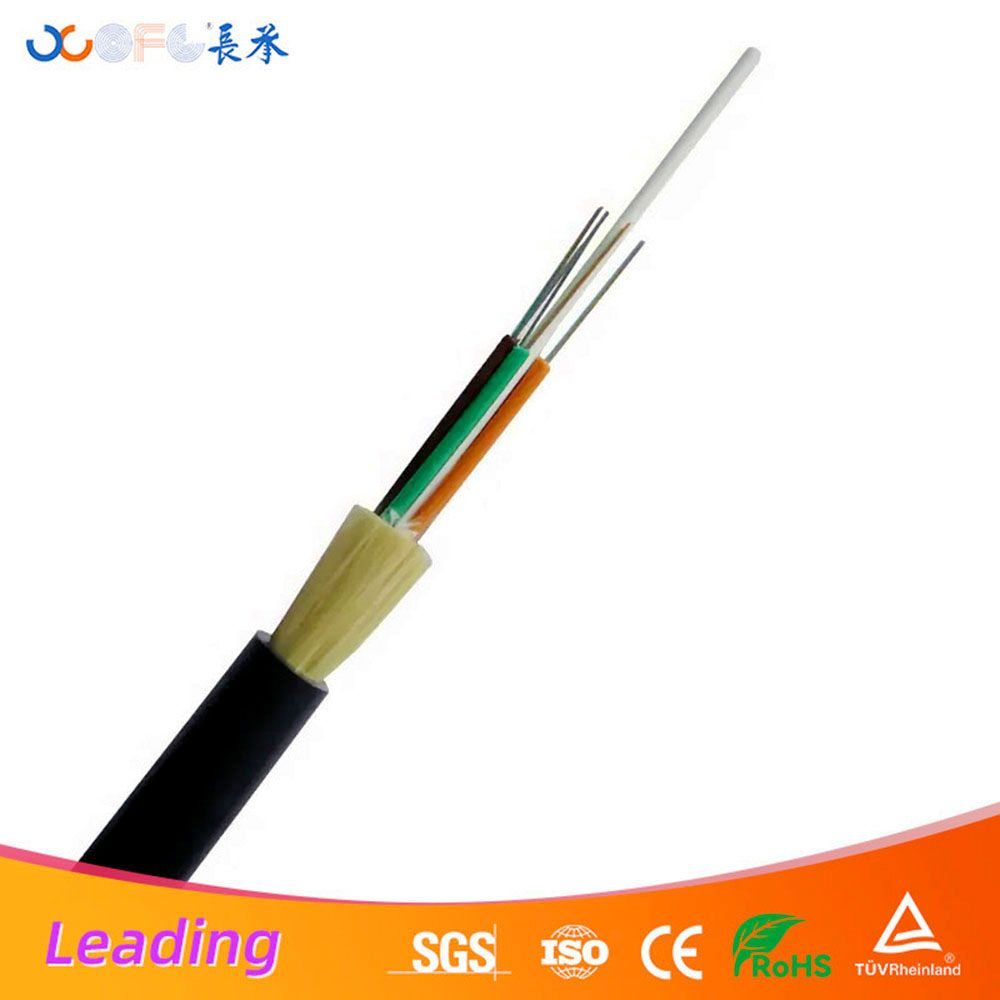

ADSS fibre optic cable is a loose-jacketed, laminated construction, with 250µm of fibre optic cable placed in a loose tube of high modulus material, filled with a waterproof compound. The loose sleeving (and filler rope) is twisted around a non-metallic central reinforcement core (FRP) to form a compact core with gaps filled with water-blocking grease. The inner sheath of polyethylene (PE) is extruded outside the core, then the reinforcing aramid is stranded and the outer sheath of PE or AT is extruded.

ADSS optical Fiber Cable Single Jacket All-Dielectric Fiber Cable fiber optic cable ADSS Cable Self-Supporting Optical Cable All-Dielectric Self-Supporting Optical Cable Outdoor Optical Cable

Product Description

Power Transmission Lines
Ideal for overhead installation along high-voltage power transmission and distribution networks

Utility Communications
Perfect for utility companies requiring reliable fiber optic communications alongside electrical infrastructure

Long-Span Installations
Excellent for crossing rivers, valleys, and other challenging terrains where traditional cables cannot reach

Railway Systems
Suitable for railway communication networks and electrified rail infrastructure

Industrial Facilities
Applications in petrochemical plants, power stations, and other high-voltage industrial environments

Telecommunications Backbone
Core infrastructure for telecom operators needing aerial fiber deployment in power corridors

Rural Connectivity
Cost-effective solution for extending fiber networks to remote areas using existing power line infrastructure

Smart Grid Applications
Essential component for modern smart grid communication and monitoring systems

Product Parameters

TECHNICAL PARAMETERS
Product Name	Single jacket All-dielectric Self-Supporting Fiber Optical Cable-ADSS
Alternative Names	ADSS Cable, Power Optical Cable, Self-Supporting Fiber Cable
Primary Functions	Overhead Fiber Optic Communication For Power Lines
Main Applications	Power Transmission Networks, Utility Communications, Long-Span Installations
Installation Method	Self-Supporting Aerial Installation (No Messenger Wire Needed)
Outer Jacket Material	PE
Cable Color Options	Black (Standard)

Core count	Structure	Number of single tube cores	Loose tube diameter(mm)	Central reinforcement diameter/cushion diameter(mm)	Nominal thickness of sheath(mm)	Cable diameter (mm)	Cable weight (kg/km)
4	1+6	4	2.0±0.1	2.3/2.3	1.7	10.5±0.5	81
6	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	81
8	1+6	4	2.0±0.1	2.3/2.3	1.7	10.5±0.5	82
12	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	82
24	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	83
36	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	84
48	1+6	12	2.2±0.1	2.6/2.6	1.7	11.1±0.5	93
72	1+6	12	2.2±0.1	2.6/2.6	1.7	11.1±0.5	95
96	1+8	12	2.2±0.1	3.0/3.9	1.7	12.6±0.5	122
144	1+12	12	2.2±0.1	4.25/6.6	1.7	15.2±0.5	188
288	1+9+15	12	2.2±0.1	4.25/4.25	1.7	17.3±0.5	241
